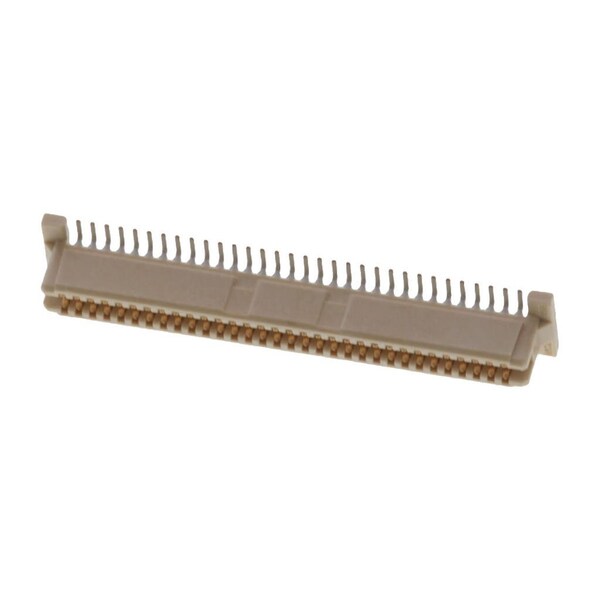

Molex Board Stacking Connector, 64 Contact(S), 2 Row(S), Female, Straight, 0.039 Inch Pitch, Surface 714390164

Board Stacking Connector, 64 Contact(S), 2 Row(S), Female, Straight, 0.039 Inch Pitch, Surface (Discontinued)

  • Mfr # 714390164
  • Zoro # G505912003
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
714390164
Zoro #
G505912003
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm
Mated Height
10.00mm, 8.00mm, 9.00mm
PCB Thickness - Recommended
1.60mm

Details

Max. Temp.
260°C
Max. Voltage
100V
Application
Board-to-Board, Signal
Series
71439
Standards
CSA Certified; UL E29179
Hole Center to Center
1 mm
Terminal Type
Surface Mount
Color
Natural
Material
High Temperature Thermoplastic
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Current Rating
1 A
Number of Contacts
64
Contact Finish
Gold Plated
Number of Rows
2
Material - Metal
Phosphor Bronze
Max-Temp
260
Lock to Mating Part
Yes
UL
E29179
Material - Resin
High Temperature Thermoplastic
Max-Cycle
3
CSA
LR19980
Pitch - Mating Interface
1.00mm
Plating min - Mating
0.762µm
Glow-Wire Capable
No
Material - Plating Mating
Gold
Temperature Range - Operating
-55° to +85°C
Polarized to PCB
No
PCB Retention
None
Max-Duration
40
PCB Locator
Yes
Orientation
Vertical
Material - Plating Termination
Tin
Current - Maximum per Contact
1.0A
Flammability
94V-0
Component Type
PCB Receptacle
Product Name
1.00mm Mezzanine (IEEE 1386)
Circuits (Loaded)
64

Description

Board Stacking Connector, 64 Contact(S), 2 Row(S), Female, Straight, 0.039 Inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle
