  11. Board Stacking Connector, 64 Contact(S), 2 Row(S), Male, Straight, 0.039 Inch Pitch, Surface Mount

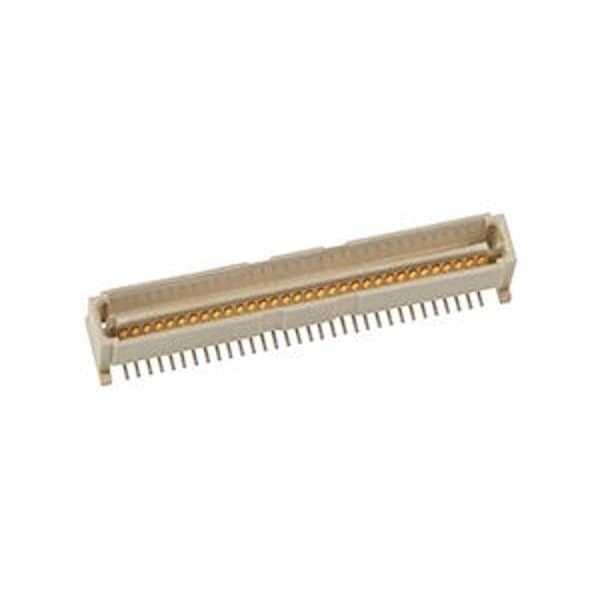

Molex Board Stacking Connector, 64 Contact(S), 2 Row(S), Male, Straight, 0.039 Inch Pitch, Surface Mount 714361164 - main

Board Stacking Connector, 64 Contact(S), 2 Row(S), Male, Straight, 0.039 Inch Pitch, Surface Mount

  • Mfr # 714361164

  • Zoro # G105911970

product price: $8.15
/ea
Sold in multiples of 15 for $122.25

Key Features

Max. Temp.
260°C
Max. Voltage
100V
Application
Board-to-Board, Signal
Series
71436
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
714361164
Zoro #
G105911970
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm
Mated Height
11.00mm, 14.00mm, 9.00mm
PCB Thickness - Recommended
1.00mm

Details

Max. Temp.
260°C
Max. Voltage
100V
Application
Board-to-Board, Signal
Series
71436
Standards
CSA Certified; UL E29179
Hole Center to Center
1 mm
Terminal Type
Surface Mount
Color
Natural
Material
High Temperature Thermoplastic
Terminal Finish
Tin Plated
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Current Rating
1 A
Number of Contacts
64
Number of Rows
2
Shrouded
Fully
Plating min - Mating
0.762µm
CSA
LR19980
PCB Locator
Yes
Component Type
PCB Header
Orientation
Vertical
Pitch - Mating Interface
1.00mm
Circuits (Loaded)
64
Material - Plating Mating
Gold
Material - Resin
High Temperature Thermoplastic
Glow-Wire Capable
No
Max-Temp
260
Material - Metal
Phosphor Bronze
Stackable
No
Product Name
1.00mm Mezzanine (IEEE 1386)
Current - Maximum per Contact
1.0A
Lock to Mating Part
None
UL
E29179
Temperature Range - Operating
-55° to +85°C
Breakaway
No
Polarized to Mating Part
No
Material - Plating Termination
Tin
PCB Retention
None
Flammability
94V-0

Description

Board Stacking Connector, 64 Contact(S), 2 Row(S), Male, Straight, 0.039 Inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug
