  6. Board To Board & Mezzanine Connectors Searay Recpt Assy 10 Y 10X20X6.6 Tin Tray

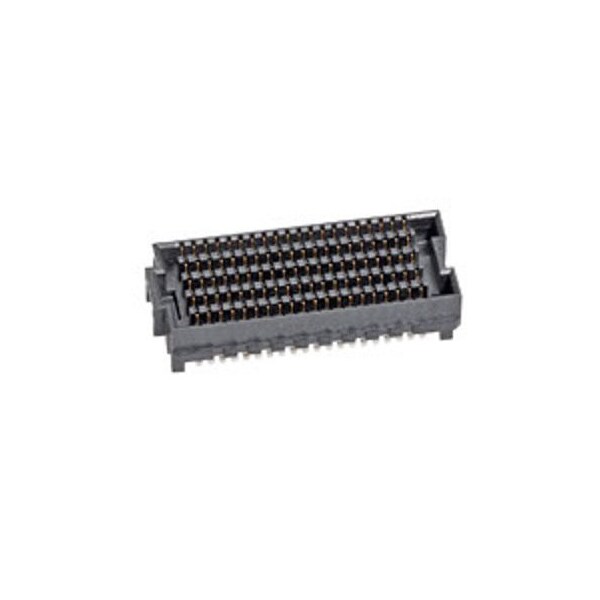

Molex Board To Board & Mezzanine Connectors Searay Recpt Assy 10 Y 10X20X6.6 Tin Tray 459712311 - main

Board To Board & Mezzanine Connectors Searay Recpt Assy 10 Y 10X20X6.6 Tin Tray

  • Mfr # 459712311

  • Zoro # G005820938

product price:  $19.99
/ea
Sold in multiples of 4 for $79.96

Key Features

Max. Voltage
240V AC
Max. Temp.
260°C
Application
Board-to-Board, Signal
Series
45971
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
459712311
Zoro #
G005820938
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
Unmated Height
6.50mm
PCB Thickness - Recommended
1.60mm

Details

Max. Voltage
240V AC
Max. Temp.
260°C
Application
Board-to-Board, Signal
Series
45971
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Color
Black
Contact Finish
Gold Plated
Current Rating
2.7 A
Hole Center to Center
1.27 mm
Terminal Finish
Tin Plated
Features
Surface Mount Compatible
Terminal Type
Surface Mount
Flammability Rating
UL 94V-0
Number of Rows
10
Number of Contacts
200
Max-Duration
3
PCB Locator
Yes
Flammability
94V-0
Temperature Range - Operating
-55° to +125°C
Material - Plating Termination
Tin
Material - Plating Mating
Gold
Circuits (Loaded)
200
Material - Metal
Copper Alloy
Component Type
PCB Receptacle
Plating min - Mating
0.762µm
CSA
LR19980
Max-Cycle
1
Grounding to PCB
No
Pitch - Mating Interface
1.27mm
Orientation
Vertical
UL
E29179
Polarized to Mating Part
Yes
Guide to Mating Part
No
Lock to Mating Part
No
Glow-Wire Capable
No
PCB Retention
Yes
Stackable
No
Durability (mating cycles max)
100
Material - Resin
High Temperature Thermoplastic
Max-Temp
260
Product Name
SEARAY
Keying to Mating Part
None
Polarized to PCB
Yes
Current - Maximum per Contact
2.7A
Robotic Placement
Pick and Place Cap
