  11. Card Edge Connector, 36+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Locking, Black

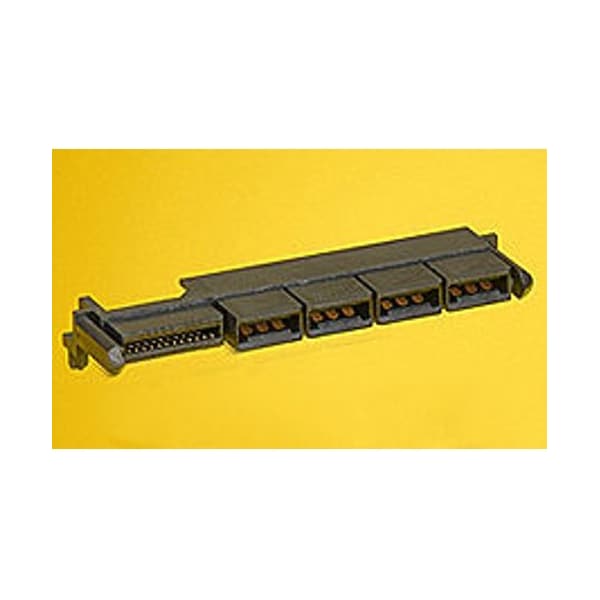

Molex Card Edge Connector, 36+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Locking, Black 459848172 - main

Card Edge Connector, 36+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Locking, Black

  • Mfr # 459848172

  • Zoro # G505951507

product price: $12.45
/ea
Sold in multiples of 6 for $74.70

Key Features

Max. Voltage
250V AC
Max. Temp.
260°C
Application
Board-to-Board, Power
Series
45984
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
459848172
Zoro #
G505951507
UPC #
822350775267
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
2.36mm
PC Tail Length
3.60mm

Details

Item
Power Connector
Max. Voltage
250V AC
Max. Temp.
260°C
Application
Board-to-Board, Power
Series
45984
Standards
CSA Certified; UL E29179
Color
Black
Material
High Temperature Thermoplastic
Features
Surface Mount Compatible
Terminal Type
Through Hole
Hole Center to Center
1.27 mm, 12 mm
Sub-Category
PCB Receptacles
Number of Contacts
44
Current Rating
23 A
Number of Rows
2
Terminal Finish
Tin Plated
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
PCB Locator
No
Temperature Range - Operating
-40° to +105°C
UL
E29179
Stackable
No
PCB Retention
None
Keying to Mating Part
Yes
(p)ower-(s)ignal Configuration
8p - 36s
Polarized to PCB
Yes
Material - Metal
High Performance Alloy (HPA)
Component Type
PCB Receptacle
Durability (mating cycles max)
250
Lock to Mating Part
No
Guide to Mating Part
No
Circuits (Loaded)
44
Glow-Wire Capable
No
Polarized to Mating Part
Yes
Orientation
Right Angle
Product Name
EXTreme LPHPower
Flammability
94V-0
Material - Plating Termination
Tin
Plating min - Mating
0.762µm
Material - Plating Mating
Gold
CSA
LR19980
Max-Cycle
3
Grounding to PCB
No
Current - Maximum per Contact
23.0A
Max-Temp
260
Pitch - Mating Interface
1.27mm, 12.00mm
Max-Duration
20
Material - Resin
High Temperature Thermoplastic

Description

Card Edge Connector, 36+8 Contact(S), 2 Row(S), Right Angle, Solder Terminal, Locking, Black Insulator, Receptacle
