  6. CGrid RA Shrd Hdr wPg 15SAu 32Ckt

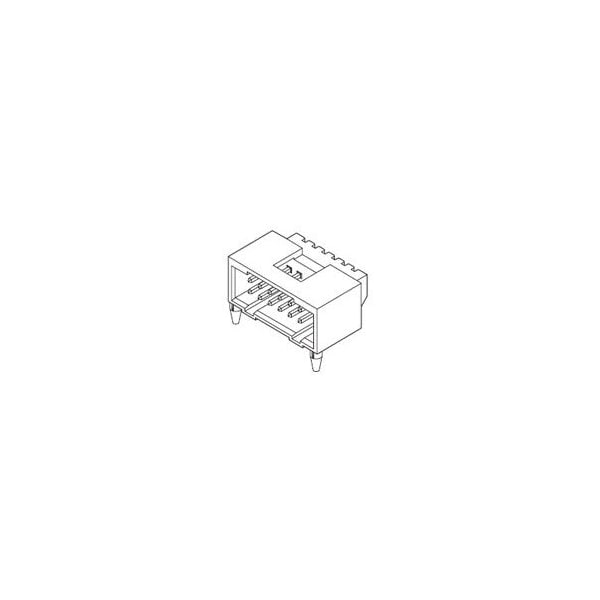

Molex CGrid RA Shrd Hdr wPg 15SAu 32Ckt 74164-0032 - main

CGrid RA Shrd Hdr wPg 15SAu 32Ckt

  • Mfr # 74164-0032

  • Zoro # G4045672

product price:  $6.99
/ea
Sold in multiples of 20 for $139.80

Key Features

Application
Board-to-Board, Signal
Color - Resin
Black
Plating min - Mating
0.381µm
Process Temperature max. C
260
Series
74164
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
74164-0032
Zoro #
G4045672
UPC #
883906878665
Country of Origin
Malaysia

Details

Application
Board-to-Board, Signal
Color - Resin
Black
Plating min - Mating
0.381µm
Process Temperature max. C
260
Series
74164
Orientation
Right Angle
Pitch - Termination Interface
2.54mm
PCB Locator
Yes
Material - Plating Mating
Gold
Circuits (maximum)
32
Temperature Range - Operating
-40° to +105°C
Duration at Max. Process Temperature (seconds)
5
Current - Maximum per Contact
2.5A
UL
E29179
Voltage - Maximum
250V
Number of Rows
2
Flammability
94V-0
Material - Metal
Phosphor Bronze
Durability (mating cycles max)
50
Material - Plating Termination
Tin
Max. Cycles at Max. Process Temperature
1
Pitch - Mating Interface
2.54mm
Material - Resin
High Performance Thermoplastic
Product Name
C-Grid
Termination Interface: Style
Through Hole
Lock to Mating Part
Yes
Circuits (Loaded)
32
