  11. CGrid RA Shrd Hdr wPg 15SAu 8Ckt

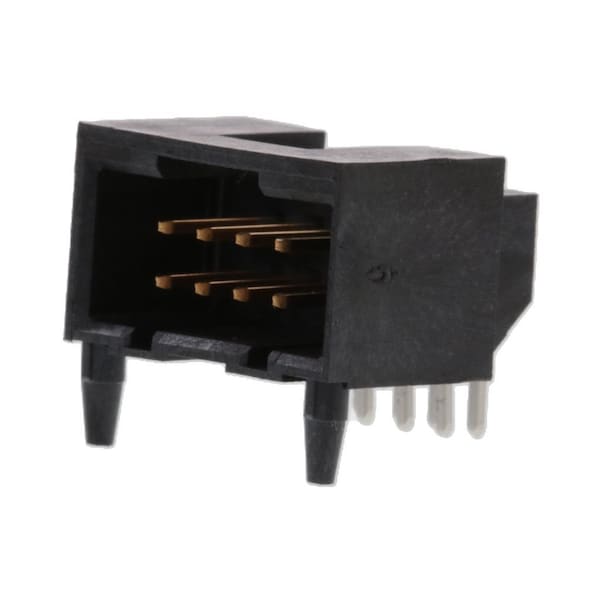

Molex CGrid RA Shrd Hdr wPg 15SAu 8Ckt 74164-0008 - main

CGrid RA Shrd Hdr wPg 15SAu 8Ckt

  • Mfr # 74164-0008

  • Zoro # G7770853

product price: $3.15
/ea
Sold in multiples of 32 for $100.80

Key Features

Application
Board-to-Board, Signal
PCB Locator
Yes
Series
74164
Plating min - Mating
0.381µm
Lock to Mating Part
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
74164-0008
Zoro #
G7770853
UPC #
883906878443
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
3.18mm

Details

Application
Board-to-Board, Signal
PCB Locator
Yes
Series
74164
Plating min - Mating
0.381µm
Lock to Mating Part
Yes
Pitch - Mating Interface
2.54mm
Product Name
C-Grid
Material - Metal
Phosphor Bronze
Orientation
Right Angle
UL
E29179
Flammability
94V-0
Material - Plating Termination
Tin
Circuits (Loaded)
8
Color - Resin
Black
Current - Maximum per Contact
2.5A
Material - Plating Mating
Gold
Material - Resin
High Performance Thermoplastic
Number of Rows
2
Temperature Range - Operating
-40° to +105°C
Pitch - Termination Interface
2.54mm
Voltage - Maximum
250V
Termination Interface: Style
Through Hole
Process Temperature max. C
260
Max. Cycles at Max. Process Temperature
1
Circuits (maximum)
8
Durability (mating cycles max)
50
Duration at Max. Process Temperature (seconds)
5
