Shop MOLEX

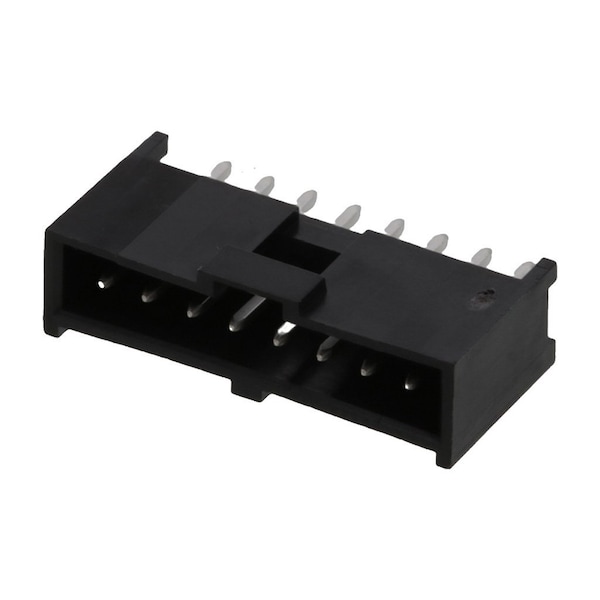

CGrid Shrd Hdr SR Vt SnA 8Ckt

  • Mfr # 90136-1108

  • Zoro # G4029520

product price:  $1.59
/ea
Sold in multiples of 73 for $116.07

Key Features

CSA
LR19980
Material - Metal
Brass
Max. Cycles at Max. Process Temperature
1
Shrouded
Fully
Flammability
94V-0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
90136-1108
Zoro #
G4029520
UPC #
-
Country of Origin
Singapore

Dimensions

PC Tail Length
2.90mm
PCB Thickness - Recommended
1.60mm

Details

CSA
LR19980
Material - Metal
Brass
Max. Cycles at Max. Process Temperature
1
Shrouded
Fully
Flammability
94V-0
UL
E29179
Process Temperature max. C
260
Termination Interface: Style
Through Hole
Current - Maximum per Contact
3.0A
Circuits (Loaded)
8
Plating min - Termination
3.048µm
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Pitch - Termination Interface
2.54mm
Lock to Mating Part
Yes
Temperature Range - Operating
-55° to +125°C
Number of Rows
1
Voltage - Maximum
350V AC/DC
Orientation
Vertical
Pitch - Mating Interface
2.54mm
Duration at Max. Process Temperature (seconds)
5
Plating min - Mating
3.048µm
Material - Resin
Polyester
Circuits (maximum)
8
Color - Resin
Black
