  11. CGrid SL RA Hdr NPegs 15SAu 7Ckt

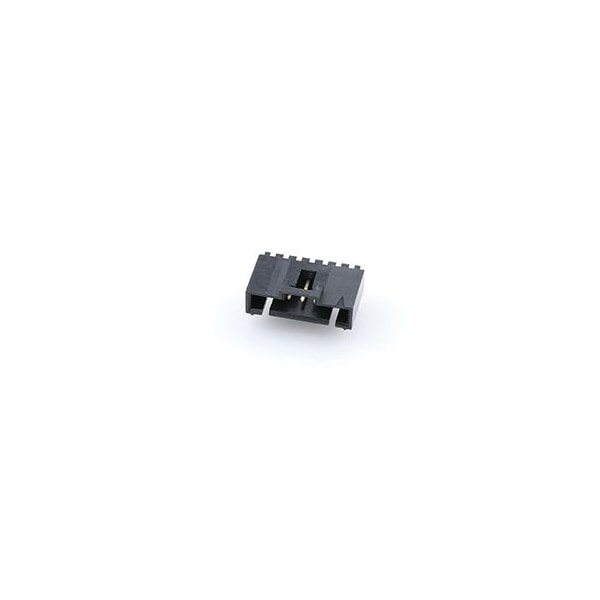

Molex CGrid SL RA Hdr NPegs 15SAu 7Ckt 70553-0006 - main

CGrid SL RA Hdr NPegs 15SAu 7Ckt

  • Mfr # 70553-0006

  • Zoro # G2755021

original price: $3.95
5% off
new price: $3.75
/ea
Sold in multiples of 30 for $112.50

Key Features

PC Tail Length
3.30mm
UL
E29179
Duration at Max. Process Temperature (seconds)
3
Current - Maximum per Contact
3.0A
Guide to Mating Part
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70553-0006
Zoro #
G2755021
UPC #
-
Country of Origin
United States

Dimensions

PC Tail Length
3.30mm
PCB Thickness - Recommended
1.60mm

Details

UL
E29179
Duration at Max. Process Temperature (seconds)
3
Current - Maximum per Contact
3.0A
Guide to Mating Part
Yes
Circuits (maximum)
7
Process Temperature max. C
260
Termination Interface: Style
Through Hole
Orientation
Right Angle
Plating min - Mating
0.381µm
Shrouded
Fully
Polarized to Mating Part
Yes
Material - Metal
Brass, Phosphor Bronze
Temperature Range - Operating
-40° to +105°C
Durability (mating cycles max)
50
Material - Plating Termination
Tin
Flammability
94V-0
Pitch - Mating Interface
2.54mm
Plating min - Termination
1.905µm
Color - Resin
Black
Material - Plating Mating
Gold
Number of Rows
1
Voltage - Maximum
250V
CSA
LR19980
Lock to Mating Part
Yes
Circuits (Loaded)
7
Material - Resin
High Temperature Thermoplastic
Max. Cycles at Max. Process Temperature
1
