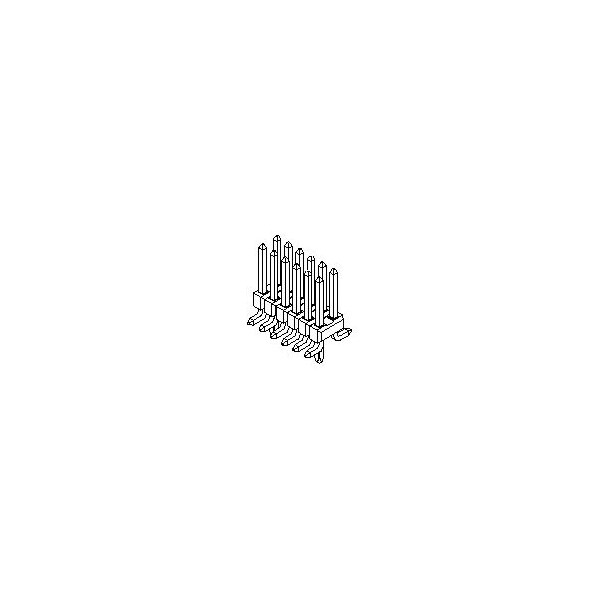

CGrid SMT Bkwy Hdr Tin 8Ckt Tube
Mfr # 15-91-2080
Zoro # G4031149
product price: $0.66
/eaSold in multiples of 2808 for $1,853.28
Key Features
Color
Black
Max. Voltage
250V
Maximum Voltage
250 V
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
245 Degrees C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
15-91-2080
Zoro #
G4031149
UPC #
-
Country of Origin
Mexico
Dimensions
Contact Plating Thickness
3.81 µm
Details
Color
Black
Max. Voltage
250V
Maximum Voltage
250 V
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
245 Degrees C
UL 94 Flammability Rating
V-0
Features
Breakaway
Terminal Type
Surface Mount
Material
High Temperature Thermoplastic
Hole Center to Center
2.54 mm
Max. Temp.
245°C
Number of Contacts
8
Current Rating
3 A
Number of Rows
2
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
