Shop MOLEX

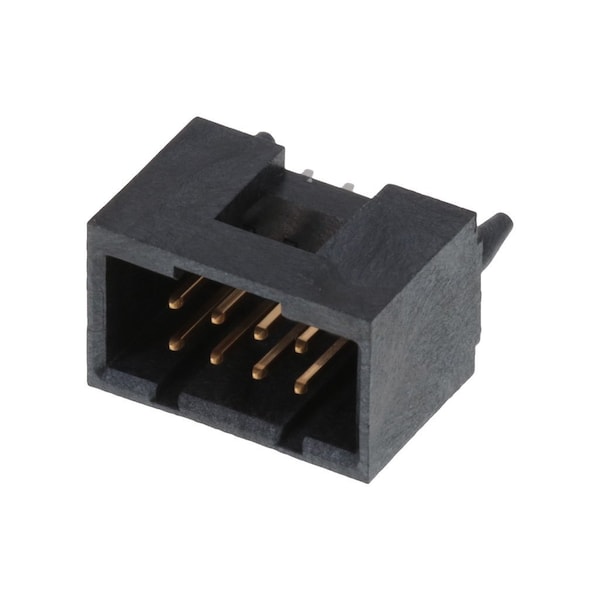

CGrid VT Shrd Hdr wPg 15SAu 8Ckt

  • Mfr # 15-47-7608
  • Zoro # G500416858
product price:
$
3.69
/ea
Sold in multiples of 26 for $95.94

Key Features

Application
Signal, Wire-to-Board
UL
E29179
Orientation
Vertical
Color - Resin
Black
Pitch - Termination Interface
2.54mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
15-47-7608
Zoro #
G500416858
UPC #
800754627856
Country of Origin
Mexico
Application
Signal, Wire-to-Board
UL
E29179
Orientation
Vertical
Color - Resin
Black
Pitch - Termination Interface
2.54mm
CSA
LR19980
Plating min - Mating
0.381µm
Material - Resin
High Temperature Thermoplastic
Current - Maximum per Contact
2.5A
Number of Rows
2
Flammability
94V-0
Process Temperature max. C
245
Voltage - Maximum
250V
Series
70568
Pitch - Mating Interface
2.54mm
Product Name
C-Grid
Shrouded
Fully
Circuits (maximum)
8
Material - Plating Mating
Gold
Lock to Mating Part
Yes
Circuits (Loaded)
8
Material - Metal
Brass, Phosphor Bronze
Duration at Max. Process Temperature (seconds)
5
Polarized to PCB
Yes
Polarized to Mating Part
Yes
Termination Interface: Style
Through Hole
PCB Retention
Yes
Max. Cycles at Max. Process Temperature
1
Temperature Range - Operating
-55° to +105°C
