Shop MOLEX

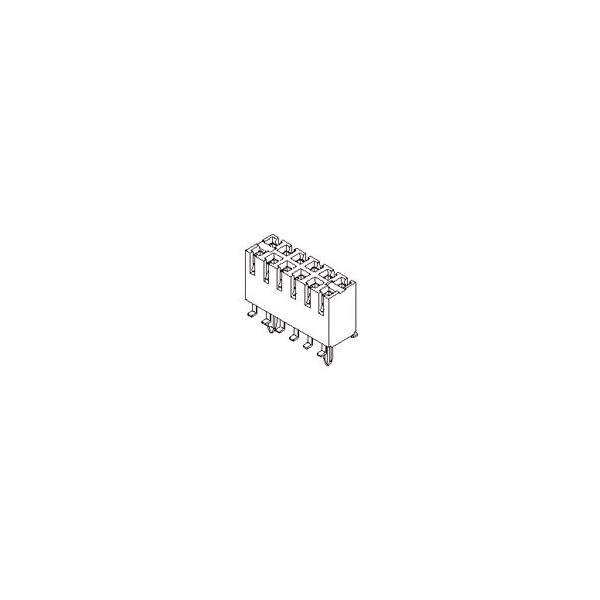

CGrid VT SMT Rcpt Tin 8Ckt

  • Mfr # 15-45-3208

  • Zoro # G4033334

product price:
$
4.25
/ea
Sold in multiples of 20 for $85.00

Key Features

Application
Board-to-Board, Signal
Flammability
94V-0
Circuits (Loaded)
8
Process Temperature max. C
260
Voltage - Maximum
250V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
15-45-3208
Zoro #
G4033334
UPC #
800754203692
Country of Origin
Mexico

Dimensions

PC Tail Length
1.47mm
PCB Thickness - Recommended
1.57mm

Details

Application
Board-to-Board, Signal
Flammability
94V-0
Circuits (Loaded)
8
Process Temperature max. C
260
Voltage - Maximum
250V
Durability (mating cycles max)
25
Series
71395
Current - Maximum per Contact
2.5A
Orientation
Vertical
Plating min - Mating
3.810µm
Pitch - Mating Interface
2.54mm
Temperature Range - Operating
-40° to +105°C
Material - Metal
Phosphor Bronze
CSA
LR19980
Material - Plating Termination
Tin
Circuits (maximum)
8
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
UL
E29179
Termination Interface: Style
Surface Mount
Product Name
C-Grid
Color - Resin
Black
Plating min - Termination
3.810µm
PCB Locator
Yes
Material - Plating Mating
Tin
