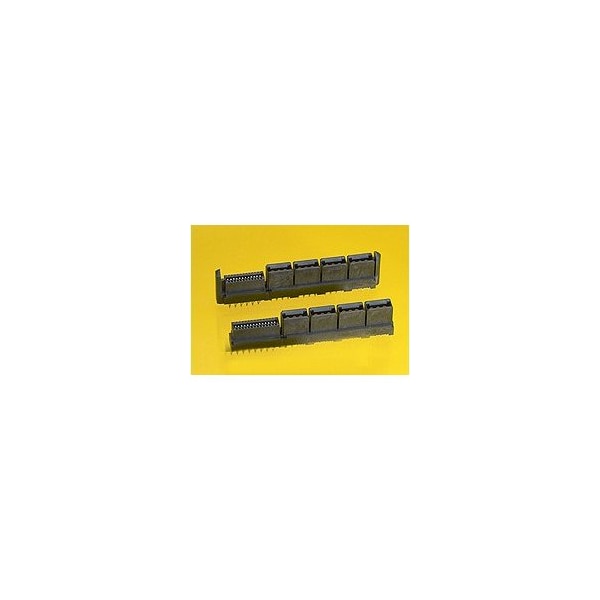

Molex LPH VERT. ASSY NO GUIDES 12PX28S CKT 46114-1229 - main

LPH VERT. ASSY NO GUIDES 12PX28S CKT

  • Mfr # 46114-1229

  • Zoro # G4043898

product price:  $14.19
/ea
Sold in multiples of 5 for $70.95

Key Features

Application
Board-to-Board, Power
Termination Interface: Style
Through Hole - Compliant Pin
Flammability
94V-0
Material - Metal
High Performance Alloy (HPA)
Polarized to Mating Part
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
46114-1229
Zoro #
G4043898
UPC #
756054922910
Country of Origin
China

Details

Application
Board-to-Board, Power
Termination Interface: Style
Through Hole - Compliant Pin
Flammability
94V-0
Material - Metal
High Performance Alloy (HPA)
Polarized to Mating Part
Yes
Surface Mount Compatible (SMC)
Yes
Material - Resin
High Temperature Thermoplastic
CSA
LR19880
Color - Resin
Black
Pitch - Termination Interface
1.27mm, 2.50mm
Material - Plating Mating
Gold
Series
46114
Orientation
Vertical
Number of Rows
2
Plating min - Termination
2.540µm
Circuits (Loaded)
30
Durability (mating cycles max)
250
Material - Plating Termination
Tin
UL
E29179
Voltage - Maximum
250V AC (RMS)/DC
(p)ower-(s)ignal Configuration
12p - 28s
Current - Maximum per Contact
30.0A
Polarized to PCB
Yes
Pitch - Mating Interface
1.27mm, 12.00mm
Product Name
EXTreme LPHPower
Circuits (maximum)
30
Plating min - Mating
0.762µm
Temperature Range - Operating
-40° to +105°C

Documents & Resources
