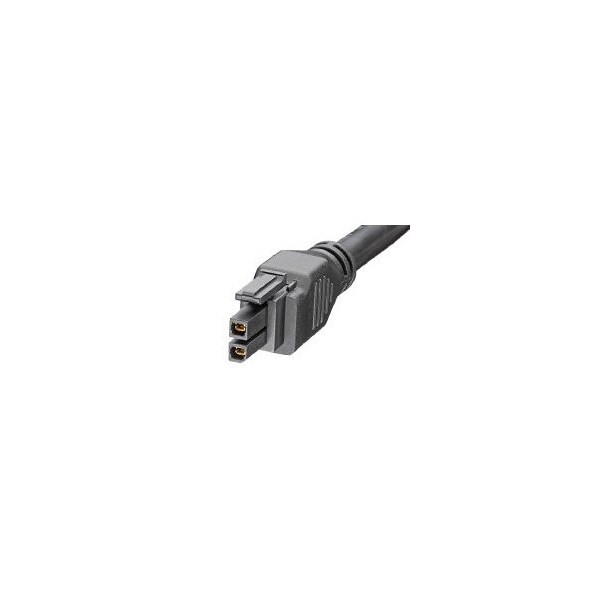

Circuit, 300V AC, 18A
Mfr # 245136-0205
Zoro # G500442574
product price:Â
$
11.25
/ea
Sold in multiples of 10 for $112.50
Key Features
Voltage
300V AC
Amps
18 A
Max. Wire Size
12 AWG
Pitch - Mating Interface
5.70mm
Circuits (Loaded)
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 245136-0205
- Zoro #
- G500442574
- UPC #
- -
- Country of Origin
- China
Dimensions
- Max. Wire Size
- 12 AWG
- Wire Insulation Diameter
- 8.80mm
- Cable Length
- 0.50m
- Wire Size AWG
- 12
Details
- Item
- Circuit
- Voltage
- 300V AC
- Amps
- 18 A
- Pitch - Mating Interface
- 5.70mm
- Circuits (Loaded)
- 2
- Current - Maximum per Contact
- 18.4A
- Lock to Mating Part
- Yes
- Color - Resin
- Black
- Material - Plating Termination
- Matte Tin
- Gender
- Female
- Single Ended
- No
- Material - Resin
- PBT
- Plating min - Mating
- 0.381 µm
- Material - Metal
- Copper Alloy
- Plating min - Termination
- 0.381 µm
- Material - Plating Mating
- Gold
- Number of Rows
- 2
- Net Weight
- 67.600/g
- Termination Interface: Style
- Crimp or Compression
