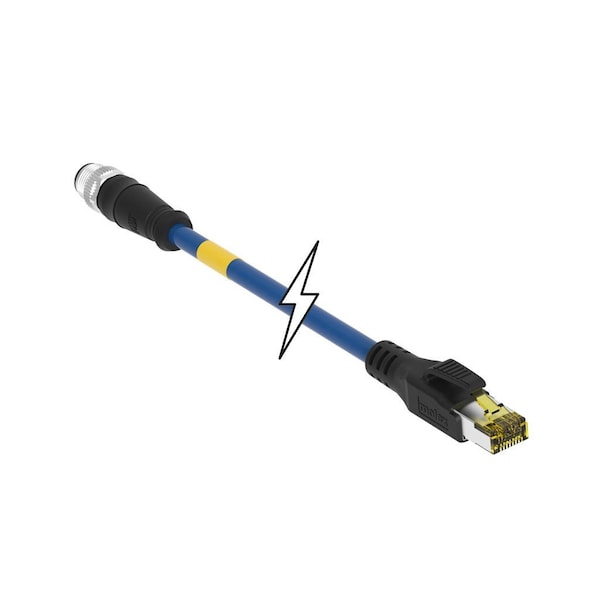

CORDSET M12 TO RJ45 CAT6A BLUE PUR 10M

  • Mfr # 1203410506

  • Zoro # G2759048


original price: $336.99
10% off
new price: $302.99
/ea
Free Shipping & Returns

Key Features

Wire/Cable Type
Shielded PUR
Orientation
Straight to Straight
Color - Cable Jacket
Blue
Keyway
X-coded
Wire Size AWG
26
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1203410506
Zoro #
G2759048
UPC #
-
Country of Origin
Germany

Dimensions

Wire Size AWG
26
Cable Diameter
6.40mm (.252")
Cable Length
10.0m (32.81')

Details

Wire/Cable Type
Shielded PUR
Orientation
Straight to Straight
Color - Cable Jacket
Blue
Keyway
X-coded
Current - Maximum per Contact
0.5A
Material - Coupling Nut
Nickel-plated Brass
Temperature Range - Operating
-40°C to +70°C
Material - Cable Jacket
PUR
Material - Plating Mating
Gold
Material - Connector Body
PUR
Voltage - Maximum
48V
Poles
8
Coupling Style
Threaded
Gender
Male-Male
IP Rating
IP20, IP67 (M12 only)
LED Indicator
No
Material - Contact
Brass
Connector End A
Micro-Change (M12)
UL
E361772
Product Name
Micro-Change (M12) Cat6A,RJ45,Industrial Ethernet
Protocol
EtherNet
Performance Category
6A
Type
Double Ended
Connector End B
RJ-45 (standard)
Series
120108

Description
