  9. Cp-3.3 Header, 3.30Mm Pitch, Dual Row, Vertical, Polarized, Positive Lock

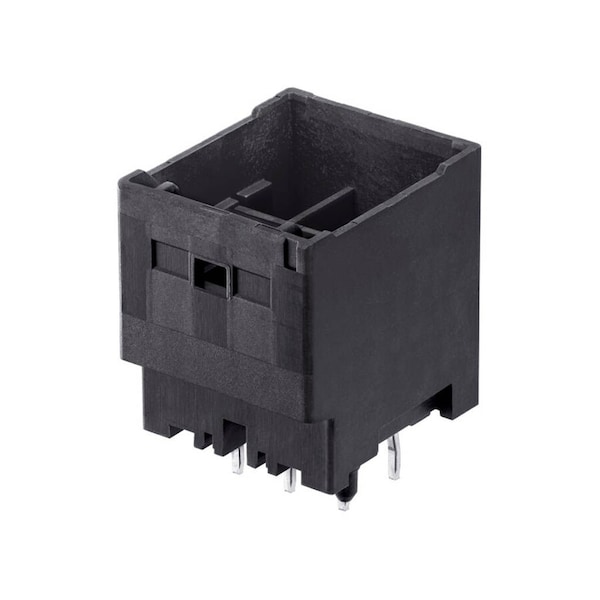

Molex Cp-3.3 Header, 3.30Mm Pitch, Dual Row, Vertical, Polarized, Positive Lock 2122100021 - main

Cp-3.3 Header, 3.30Mm Pitch, Dual Row, Vertical, Polarized, Positive Lock

  • Mfr # 2122100021

  • Zoro # G905910241

product price: $0.62
/ea
Sold in multiples of 150 for $93.00

Key Features

Color
Black
Number of Rows
2
Series
212210
Max. Voltage
500V AC/DC
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2122100021
Zoro #
G905910241
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.35mm

Details

Color
Black
Number of Rows
2
Series
212210
Max. Voltage
500V AC/DC
Application
Power, Wire-to-Board
Hole Center to Center
3.3 mm
Current Rating
8.5 A
Standards
UL E29179
Material
Polyamide
Features
Glow-Wire Capable
Terminal Type
Through Hole
Max. Temp.
105°C
Terminal Finish
Matte Tin Plated
Contact Finish
Matte Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
2
Material - Metal
Copper Alloy
Temperature Range - Operating
-40° to +105°C
UL
E29179
Polarized to Mating Part
Yes
Current - Maximum per Contact
8.5A
First Mate / Last Break
No
Lock to Mating Part
Yes
Component Type
PCB Header
Product Name
CP-3.3
Glow-Wire Capable
Yes
PCB Locator
Yes
Guide to Mating Part
No
Keying to Mating Part
Yes
Flammability
94V-0
Breakaway
No
Polarized to PCB
Yes
Material - Plating Mating
Matte Tin
Material - Plating Termination
Matte Tin
Material - Resin
Polyamide
PCB Retention
Yes
Pitch - Mating Interface
3.30mm
Orientation
Vertical
Circuits (Loaded)
2
