  9. Cp-3.3 Header, 3.30Mm Pitch, Dual Row, Vertical, Polarized, Positive Lock

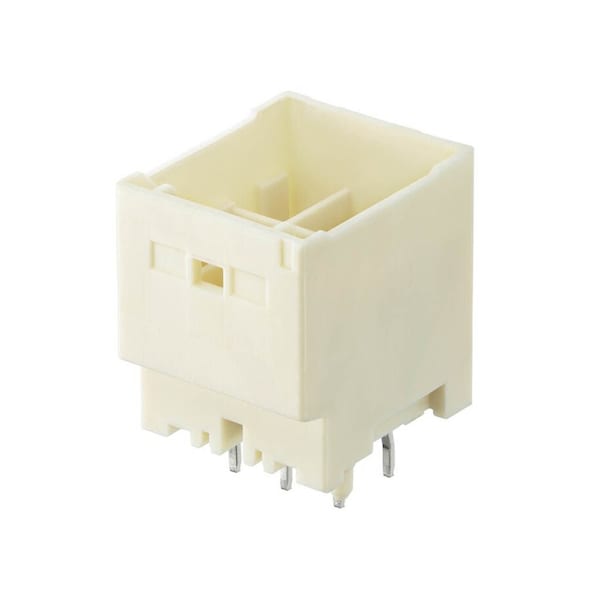

Molex Cp-3.3 Header, 3.30Mm Pitch, Dual Row, Vertical, Polarized, Positive Lock 2122100040 - main

Cp-3.3 Header, 3.30Mm Pitch, Dual Row, Vertical, Polarized, Positive Lock

  • Mfr # 2122100040

  • Zoro # G205910231

product price: $0.85
/ea
Sold in multiples of 104 for $88.40

Key Features

Color
Natural
Number of Rows
2
Series
212210
Max. Voltage
500V AC/DC
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2122100040
Zoro #
G205910231
UPC #
-
Country of Origin
India

Dimensions

PC Tail Length
3.35mm
PCB Thickness - Recommended
1.60mm

Details

Color
Natural
Number of Rows
2
Series
212210
Max. Voltage
500V AC/DC
Application
Power, Wire-to-Board
Features
Glow-Wire Capable
Hole Center to Center
3.3 mm
Material
Polyamide
Terminal Type
Through Hole
Max. Temp.
105°C
Current Rating
8.5 A
Standards
UL E29179
Contact Finish
Matte Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
4
Terminal Finish
Matte Tin Plated
Product Name
CP-3.3
Keying to Mating Part
Yes
Polarized to PCB
Yes
Current - Maximum per Contact
8.5A
Circuits (Loaded)
4
Flammability
94V-0
Material - Plating Termination
Matte Tin
Orientation
Vertical
Temperature Range - Operating
-40° to +105°C
Pitch - Mating Interface
3.30mm
First Mate / Last Break
No
Lock to Mating Part
Yes
Polarized to Mating Part
Yes
Component Type
PCB Header
PCB Retention
Yes
Guide to Mating Part
No
Material - Plating Mating
Matte Tin
Glow-Wire Capable
Yes
Material - Resin
Polyamide
UL
E29179
Material - Metal
Copper Alloy
Breakaway
No
PCB Locator
Yes
