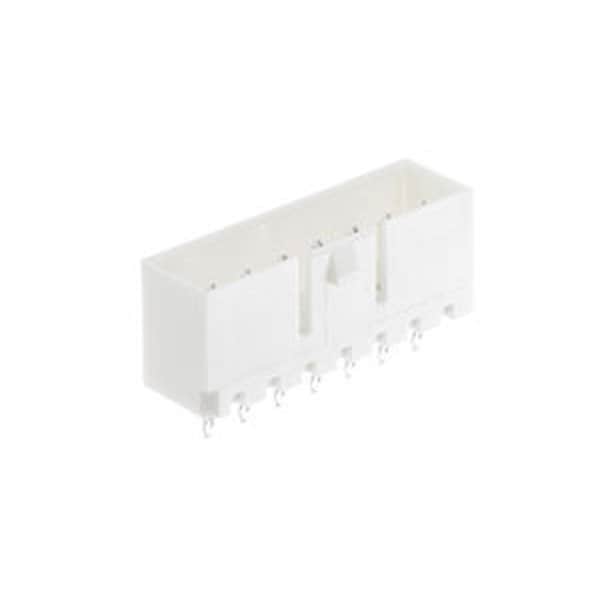

Headers & Wire Housings 3.5 Wtb Wafer Assy S Wafer Assy St 14Ckt

  • Mfr # 532581429
  • Zoro # G205911535
product price:
$
2.29
/ea
Sold in multiples of 40 for $91.60

Key Features

Number of Rows
1
Series
53258
Max. Voltage
250V
Application
Power, Wire-to-Board
Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
532581429
Zoro #
G205911535
UPC #
-
Country of Origin
Japan

Dimensions

Contact Plating Thickness
1.016 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Number of Rows
1
Series
53258
Max. Voltage
250V
Application
Power, Wire-to-Board
Material
Brass
Terminal Type
Through Hole
Max. Temp.
105°C
Standards
UL E29179
Hole Center to Center
3.5 mm
Current Rating
5.5 A
Contact Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
14
Terminal Finish
Tin Plated
Polarized to PCB
No
Material - Plating Mating
Tin
Pitch - Mating Interface
3.50mm
Product Name
Mighty-SPOX
Orientation
Vertical
Breakaway
No
UL
E29179
Temperature Range - Operating
-40° to +105°C
Glow-Wire Capable
No
PCB Retention
None
First Mate / Last Break
No
Shrouded
Fully
Plating min - Mating
1.016µm
Component Type
PCB Header
Guide to Mating Part
Yes
PCB Locator
No
Durability (mating cycles max)
30
Circuits (Loaded)
14
Keying to Mating Part
None
Lock to Mating Part
Yes
Stackable
No
Material - Plating Termination
Tin
Current - Maximum per Contact
5.5A
