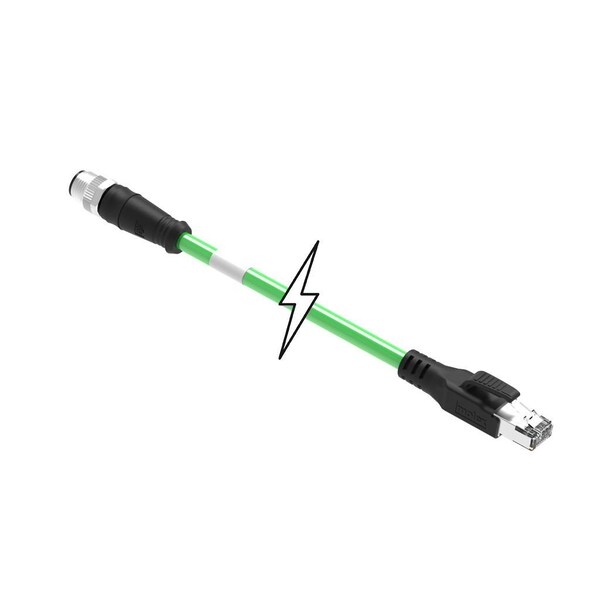

CSE M12ETH 4P DC MA STR RJ45 STR WSOR 2M

  • Mfr # 1201080522

  • Zoro # G2751582


product price: $81.59
/ea
Sold in multiples of 2 for $163.18
Free Shipping & Returns

Key Features

Wire/Cable Type
Shielded TPU
IP Rating
IP20, IP67
Temperature Range - Operating
-40° to +80°C
Cable Diameter
6.80mm (.268")
Gender
Male-Male
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1201080522
Zoro #
G2751582
UPC #
-
Country of Origin
Poland

Dimensions

Cable Diameter
6.80mm (.268")
Wire Size (AWG)
22
Cable Length
2.0m (6.56')

Details

Wire/Cable Type
Shielded TPU
IP Rating
IP20, IP67
Temperature Range - Operating
-40° to +80°C
Gender
Male-Male
Color - Cable Jacket
Green
Performance Category
5e
Connector End A
Micro-Change (M12)
Material - Plating Mating
Gold
Keyway
D-coded
Orientation
Straight to Straight
LED Indicator
No
Coupling Style
Push and Latch, Threaded
Product Name
Micro-Change (M12),RJ45
Current - Maximum per Contact
1.5A
Voltage - Maximum
30V
Material - Cable Jacket
TPU
Material - Connector Body
TPU
Poles
4
Material - Coupling Nut
Nickel-plated Brass
Connector End B
RJ-45 (standard)
Type
Double Ended
Material - Contact
Brass, Phosphor Bronze
Series
120108
