  11. CSE M8 3P AC FE RA WSOR 10M

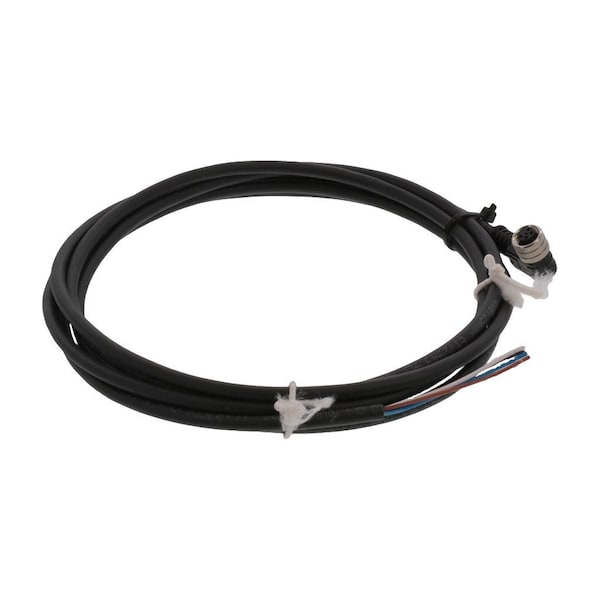

Molex CSE M8 3P AC FE RA WSOR 10M 1200868670 - main

CSE M8 3P AC FE RA WSOR 10M

  • Mfr # 1200868670

  • Zoro # G4033258

product price: $46.45
/ea
Sold in multiples of 2 for $92.90

Key Features

Cable Length
10.0m (32.81')
Material - Plating Mating
Gold
Keyway
Single
Gender
Female-Pigtail
Material - Coupling Nut
Nickel-plated Brass
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200868670
Zoro #
G4033258
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
10.0m (32.81')
Cable Diameter
4.50mm (.177")
Wire Size AWG
24

Details

Material - Plating Mating
Gold
Keyway
Single
Gender
Female-Pigtail
Material - Coupling Nut
Nickel-plated Brass
Orientation
90° to Pigtail
Coupling Style
Knurled Hexnut, Threaded
Color - Cable Jacket
Black
Temperature Range - Operating
-25°C to +85°C
Poles
3
Material - Connector Body
TPU
Material - Cable Jacket
TPU
Current - Maximum per Contact
3.0A
Wire/Cable Type
WSOR
Voltage - Maximum
60V
Product Name
Nano-Change (M8)
Connector End B
Pigtail
Series
120086
IP Rating
IP67
Connector End A
Nano-Change (M8)
Material - O-Ring
Fluoro-elastomer
Type
Single Ended
Material - Contact
Brass
LED Indicator
No
