Shop HUBBELL WIRING DEVICE-KELLEMS

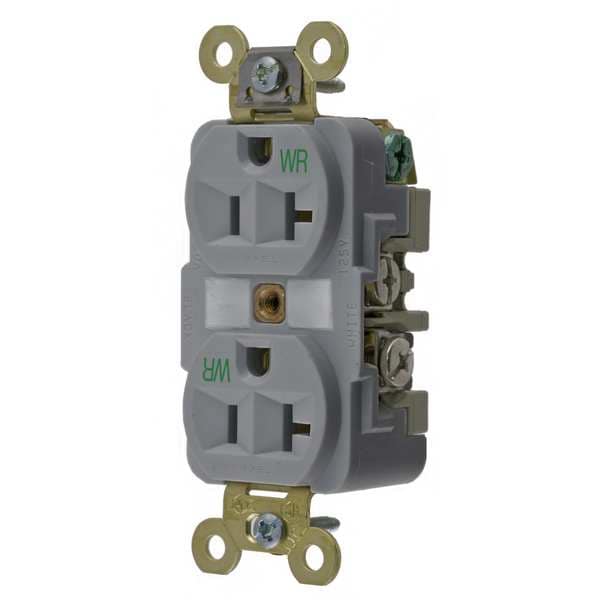

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5362GYWR

  • Zoro # G1216135

product price:  $35.85
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL5362GYWR
Zoro #
G1216135
UPC #
783585320571
Country of Origin
United States

Dimensions

Display Size
Standard Sized Product
Height
1.19 in
Dimensions
3.28 in x 1.65 in x 1.19 in
Length
3.28 in
Wire Size
#12 AWG to #10 AWG
Width
1.65 in
Minimum Wire Size
12 AWG
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Configuration
5-20
Corrosion Resistant
No
Outlet Type
Duplex
Weather Resistant
Yes
Mounting Type
Flush
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type - Plugs and Receptacles
Flush
Sub-Category
Duplex Receptacles
Surge Suppression
No
Material
Nylon/Reinforced PET
HP
1 hp
Weather Resistant - Plugs and Receptacles
Yes
Voltage
125VAC
Number of Gangs
1
Application Environment
Harsh and Heavy Use Industrial
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
UPC
783585000000
Environmental Rating
Weather Resistant
Nema Rating
5-20R
Type
Weather Resistant
Wattage
2500 W
Style
Finder Groove Face
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Dielectric Strength
Withstands 2,000V minimum
Weight
0.25 lb
Mounting Hardware Material
Screw Mounting
Number Of Wires
3-Wire
Connectivity
Back and Side Wired Screw Terminals
Amperage
20 A
Brand
Hubbell Wiring Device-Kellems
Application
Extra Heavy Duty Specification Grade
Carton Quantity
10
Maximum Horsepower
1
Series
Extra Heavy Duty
NEMA Enclosure Rating
1
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
Contact Material
Nickel-Plated Brass
Includes Mounting Hardware
Yes
Shrouded
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-0, V-2
Surge Protection
No
GFCI
No
Polarized
Yes
Housing Material
Nylon, Reinforced PET
Cover Type
No Cover
Market
Industrial
AFCI
No
Maximum Operating Temperature
167 Degrees F
Grade
Federal Specification
Mounting Strap Material
.050" (1.3) Brass
Base Material
Reinforced PET
Receptacle Style
Duplex
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Dielectric Voltage
Withstands 2,000V minimum
Receptacle Grade
Extra Heavy Duty, Weather Resistant
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Poles and Wires
2 Pole, 3-Wire Grounding
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Face Style
Finder Groove
Ground Screw Material
#10-32 Silicon Bronze (Green)
Device Color
Gray
Current Interrupting
Certified for current interrupting at full rated current
Mounting Screw Material
Steel-Zinc Plated
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Rating
15A, 125V
Power Contacts Material
.037" (.9) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Auto Ground Clip Material
Stainless Steel
Top Material
Nylon
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better
Standard
NEMA
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Face Shape
Traditional
Horsepower
1
Terminal Identification
Terminals identified in accordance with UL 498 and CSA

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R GY is a traditional duplex straight blade receptacle intended for use in demanding environments; meets specification-grade requirements. Rated for 20 amps and 125 volts AC, this device is constructed with materials rated as weather resistant per applicable standards. It includes both back and side wired screw terminals to accommodate #12 to #10 AWG copper wire, with a grounded design and finder groove face style for circuit identification.


Key Features of the HUBBELL - 20A Duplex Receptacle:

  • Amperage/Voltage: Rated for 20 A, 125 VAC operation

  • NEMA Configuration: NEMA 5-20R, standard duplex outlet type

  • Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#12–#10 AWG)

  • Material Construction: Nylon/reinforced PET housing with nickel-plated brass contacts

  • Weather Resistant: Rated for resistance to environmental exposure per applicable standards

  • Mounting Type: Flush mount installation with included mounting hardware

  • Grounding Features: One-piece brass integral ground strap; includes grounding clip

  • Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596, NEMA WD-6 compliant

  • Operating Temperature Range: Maximum continuous temperature of 75°C; minimum -40°C without impact
