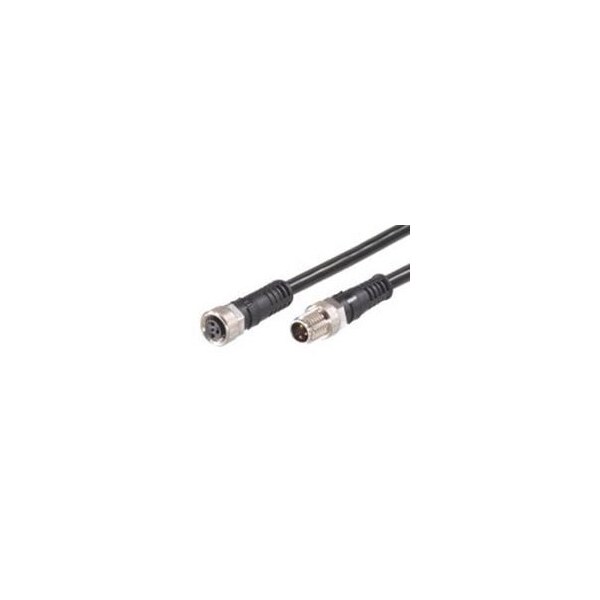

Molex CSE M8 4P AC FE STR WSOR 1M 1200868659 - main

CSE M8 4P AC FE STR WSOR 1M

  • Mfr # 1200868659

  • Zoro # G2083310

product price:  $19.15
/ea
Sold in multiples of 24 for $459.60

Key Features

Material - Cable Jacket
TPU
Keyway
Single
Material - Coupling Nut
Nickel-plated Brass
Cable Length
1.0m (3.28')
Color - Cable Jacket
Black
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1200868659
Zoro #
G2083310
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
1.0m (3.28')
Wire Size AWG
24
Cable Diameter
4.80mm (.189")

Details

Material - Cable Jacket
TPU
Keyway
Single
Material - Coupling Nut
Nickel-plated Brass
Color - Cable Jacket
Black
Temperature Range - Operating
-25°C to +85°C
Wire/Cable Type
WSOR
Material - Plating Mating
Gold
Gender
Female-Pigtail
Coupling Style
Knurled Hexnut, Threaded
Orientation
Straight to Pigtail
Current - Maximum per Contact
3.0A
Voltage - Maximum
30V
Poles
4
Material - Connector Body
TPU
Type
Single Ended
IP Rating
IP67
Series
120086
Connector End A
Nano-Change (M8)
Material - Contact
Brass
Connector End B
Pigtail
LED Indicator
No
Material - O-Ring
Fluoro-elastomer
Product Name
Nano-Change (M8)
