Shop MOLEX

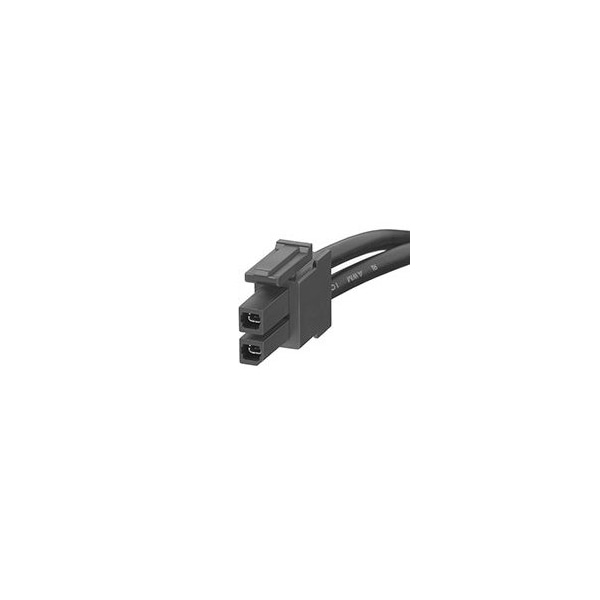

Dc Power Cords Mega-Fit Cable Assy 2Ckt Dr 150Mm Blk

  • Mfr # 451360201

  • Zoro # G405981864

product price:
$
4.39
/ea
Sold in multiples of 20 for $87.80

Key Features

Max. Amps
23 A
Voltage
600V
Jacket Color
Black
Standards
UL 1015
Conductor Material
Copper Alloy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
451360201
Zoro #
G405981864
UPC #
-
Country of Origin
India

Dimensions

Spool Length
150 mm
Wire Insulation Diameter
3.90mm
Cable Length
150.00mm
Wire Size (AWG)
12

Details

Max. Amps
23 A
Voltage
600V
Jacket Color
Black
Standards
UL 1015
Conductor Material
Copper Alloy
Wire Gauge
12 AWG
Gender
Female-Female
Material - Plating Termination
Matte Tin
Circuits (Loaded)
2
Single Ended
No
Connector to Connector
Mega-Fit-to-Mega-Fit
Type
Discrete Wire Assembly, High-Power Assembly
Assembly Configuration
Dual Ended Connectors
Pitch - Mating Interface
5.70mm
Current - Maximum per Contact
23.0A
Material - Resin
Nylon
Series
45136
Termination Interface Style
Crimp or Compression
Number of Rows
2
Overmolded
No
Application
Power, Wire-to-Board
Material - Plating Mating
Matte Tin
Lock to Mating Part
Yes
Product Name
Mega-Fit
Plating min - Mating
1.524µm
