Shop MOLEX

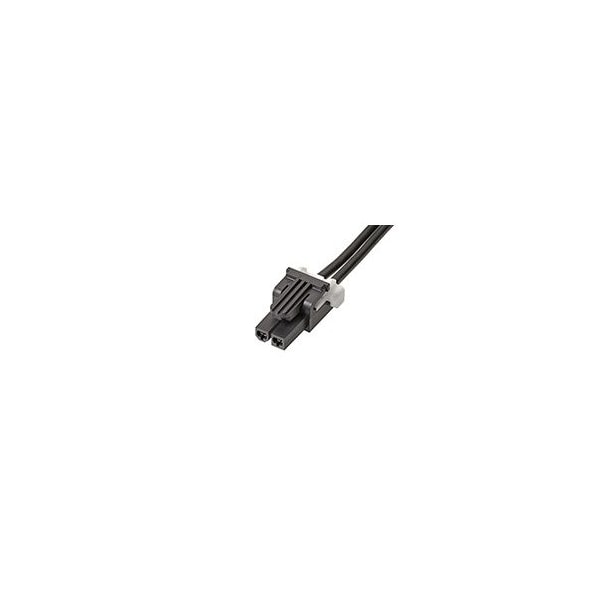

Dc Power Cords Minifit Tpa2 2Ckt Sr 300Mm Ots Cbl Assy

  • Mfr # 1451350203

  • Zoro # G605981596

product price:  $3.55
/ea
Sold in multiples of 22 for $78.10

Key Features

Insulation Material
Nylon
Maximum Voltage
600 V AC/DC
Current
11 A
Length
300 mm
Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1451350203
Zoro #
G605981596
UPC #
-
Country of Origin
India

Dimensions

Length
300 mm
Max. Insulation Dia.
3.14 mm
Contact Plating Thickness
2.5 µm
Wire Insulation Diameter
1.98-3.14mm
Wire Size (AWG)
16
Cable Length
300.00mm

Details

Item
Mini-Fit TPA2
Insulation Material
Nylon
Maximum Voltage
600 V AC/DC
Current
11 A
Material
Nylon
Color
Black
Connector Type
Female-Female
Series
145135
Type
Discrete Wire Assembly
Current Rating
11 A
Terminal Type
Crimp or Compression
Contact Finish
Tin Plated
Hole Center to Center
4.2 mm
Application
Power, Wire-to-Board, Wire-to-Wire
Number of Rows
1
Max. Voltage
600V AC/DC
Number of Contacts
2
Wire Range
16 AWG
Terminal Finish
Tin Plated
Wire/Cable Type
UL 1061
Connector to Connector
Mini-Fit TPA2 Both Ends
Overmolded
No
Material - Resin
Nylon
Circuits (Loaded)
2
Material - Plating Mating
Tin
Assembly Configuration
Dual Ended Connectors
Product Name
Mini-Fit TPA2
Pitch - Mating Interface
4.20mm
Material - Metal
Phosphor Bronze
Current - Maximum per Contact
11.0A
Single Ended
No
Plating min - Mating
2.500µm
Lock to Mating Part
Yes
Material - Plating Termination
Tin
