Shop MOLEX

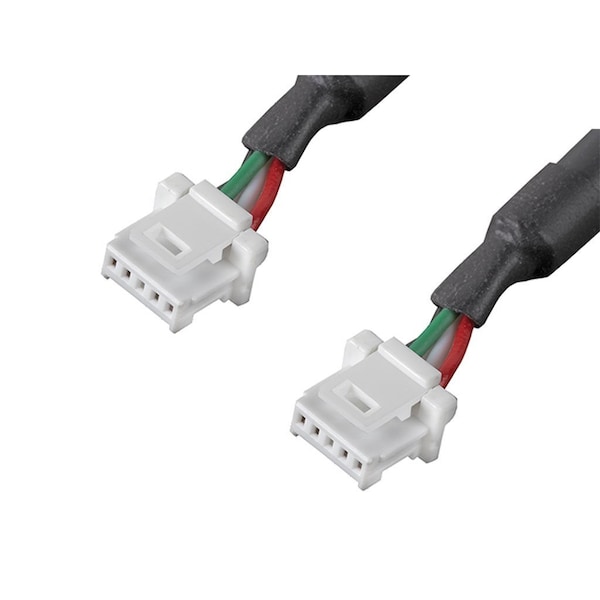

Expresslink 2.0 Pico-Clasp Female-To-Pico-Clasp Female Cable Assembly, Single Row, 300.00Mm Length

  • Mfr # 2151700602

  • Zoro # G505925959

product price:
$
5.29
/ea
Sold in multiples of 15 for $79.35

Key Features

Cable Length
300.00mm
Application
Signal, Wire-to-Board, Wire-to-Wire
Series
215170
Material - Plating Mating
Gold
Plating min - Termination
0.914µm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2151700602
Zoro #
G505925959
UPC #
-
Country of Origin
India

Dimensions

Cable Length
300.00mm
Wire Insulation Diameter
0.80mm max.
Wire Size AWG
28

Details

Application
Signal, Wire-to-Board, Wire-to-Wire
Series
215170
Material - Plating Mating
Gold
Plating min - Termination
0.914µm
Material - Resin
Nylon
Number of Rows
1
Voltage - Maximum
100V AC (RMS)/DC
Current - Maximum per Contact
1.5A
Termination Interface: Style
Crimp or Compression
Lock to Mating Part
Yes
Color - Resin
White
Circuits (Loaded)
6
Material - Plating Termination
Tin
Plating min - Mating
0.760µm
Pitch - Mating Interface
1.00mm
Gender
Female-Female
Wire/Cable Type
UL 2725
Material - Metal
Phosphor Bronze
Product Name
ExpressLink 2.0,Pico-Clasp
Connector to Connector
Pico-Clasp-to-Pico-Clasp
Single Ended
No
Assembly Configuration
Dual Ended Connectors
