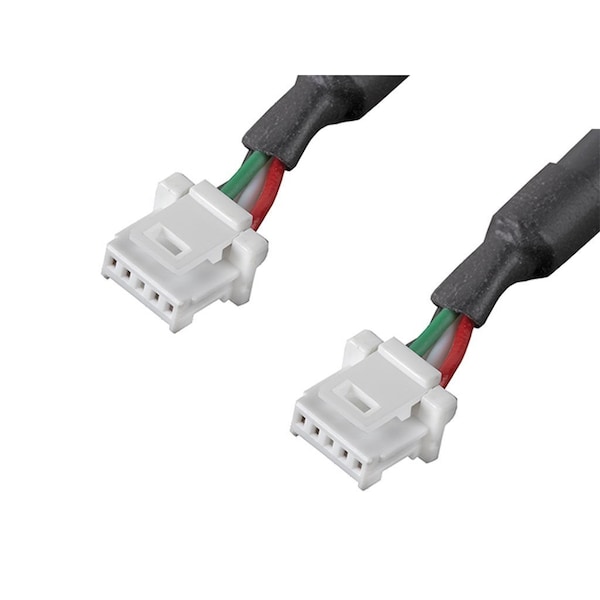

Expresslink 2.0 Pico-Clasp Female-To-Pico-Clasp Female Cable Assembly, Single Row, 600.00Mm Length
Mfr # 2151700603
Zoro # G105925915
product price:Â
$
6.15
/ea
Sold in multiples of 15 for $92.25
Key Features
Cable Length
600.00mm
Wire Size AWG
28
Lock to Mating Part
Yes
Material - Plating Mating
Gold
Termination Interface: Style
Crimp or Compression
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2151700603
- Zoro #
- G105925915
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 600.00mm
- Wire Size AWG
- 28
- Wire Insulation Diameter
- 0.80mm max.
Details
- Lock to Mating Part
- Yes
- Material - Plating Mating
- Gold
- Termination Interface: Style
- Crimp or Compression
- Color - Resin
- White
- Plating min - Termination
- 0.914µm
- Circuits (Loaded)
- 6
- Wire/Cable Type
- UL 2725
- Current - Maximum per Contact
- 1.5A
- Material - Metal
- Phosphor Bronze
- Pitch - Mating Interface
- 1.00mm
- Material - Resin
- Nylon
- Plating min - Mating
- 0.760µm
- Material - Plating Termination
- Tin
- Gender
- Female-Female
- Number of Rows
- 1
- Voltage - Maximum
- 100V AC (RMS)/DC
