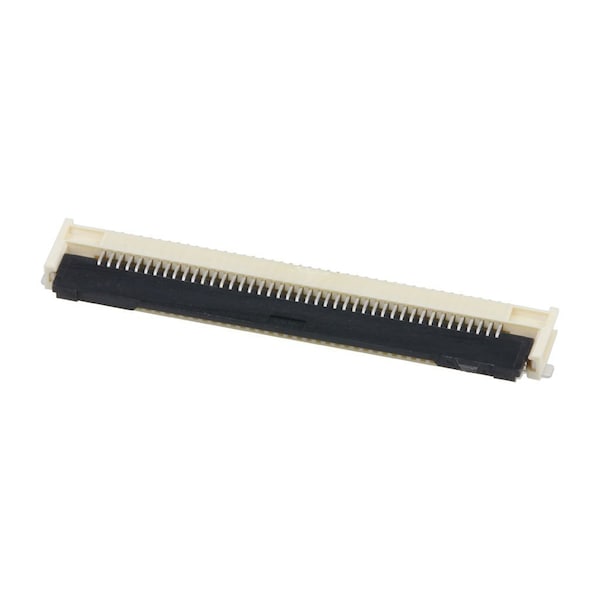

Molex Ffc/Fpc Connector, 43 Contact(S), 1 Row(S), Female, Right Angle, 0.020 Inch Pitch, Surface Mount 5051104391 - main

Ffc/Fpc Connector, 43 Contact(S), 1 Row(S), Female, Right Angle, 0.020 Inch Pitch, Surface Mount

  • Mfr # 5051104391

  • Zoro # G005913876

product price: $1.65
/ea
Sold in multiples of 3000 for $4,950.00

Key Features

Max. Temp.
105°C
Max. Voltage
50V AC/DC
Series
505110
Hole Center to Center
0.5 mm
Material
Liquid Crystal Polymer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5051104391
Zoro #
G005913876
UPC #
191128824316
Country of Origin
Japan

Dimensions

Contact Plating Thickness
0.051 µm
Mated Height
1.90mm

Details

Item
FFC FPC Connector
Max. Temp.
105°C
Max. Voltage
50V AC/DC
Series
505110
Hole Center to Center
0.5 mm
Material
Liquid Crystal Polymer
Color
Beige
Sub-Category
FFC/FPC Connectors
Number of Rows
1
Number of Contacts
43
Current Rating
0.5 A
Contact Finish
Gold over Nickel
Terminal Finish
Gold over Nickel
Durability (mating cycles max)
20
Material - Plating Termination
Gold
Material - Metal
Phosphor Bronze
Current - Maximum per Contact
0.5A
Temperature Range - Operating
-40° to +105°C
Wire/Cable Type
FFC/FPC
Circuits (Loaded)
43
Material - Plating Mating
Gold
PCB Retention
Yes
Contact Position
Bottom
Material - Resin
Liquid Crystal Polymer
PCB Locator
No
PCB Mounting
Surface Mount
Actuator Type
Front Flip
Stackable
No
Polarized to PCB
Yes
Voltage - Maximum
50V
Plating min - Mating
0.051µm
Pitch - Mating Interface
0.50mm
Product Name
Easy-On
Orientation
Right Angle

Description

Ffc/Fpc Connector, 43 Contact(S), 1 Row(S), Female, Right Angle, 0.020 Inch Pitch, Surface Mount Terminal
