  6. Headers & Wire Housings 2.54Mm Cgridiii Hdr 40P V Dr Shrd Au-E

This item is Discontinued.

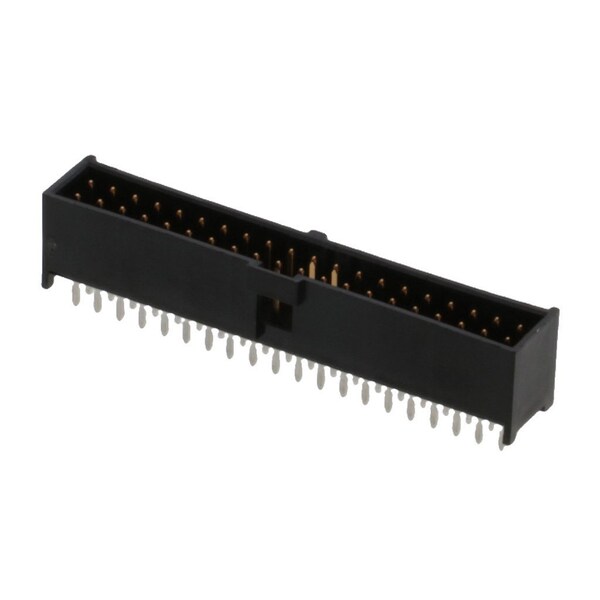

Molex Headers & Wire Housings 2.54Mm Cgridiii Hdr 40P V Dr Shrd Au-E 901301240

Headers & Wire Housings 2.54Mm Cgridiii Hdr 40P V Dr Shrd Au-E (Discontinued)

  • Mfr # 901301240
  • Zoro # G605915102
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
901301240
Zoro #
G605915102
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
2.90mm

Details

Max. Temp.
235°C
Max. Voltage
350V AC/DC
Application
Signal, Wire-to-Board
Series
90130
Standards
CSA Certified; UL E29179
Material
Polyester
Color
Black
Terminal Type
Through Hole
Hole Center to Center
2.54 mm
Terminal Finish
Tin Plated
Number of Contacts
40
Flammability Rating
UL 94V-0
Number of Rows
2
Contact Finish
Gold Plated
Current Rating
3 A
CSA
LR19980
Lock to Mating Part
Yes
Guide to Mating Part
No
Keying to Mating Part
None
Pitch - Mating Interface
2.54mm
Glow-Wire Capable
No
Material - Metal
Brass
Max-Temp
235
PCB Retention
None
Max-Cycle
1
Stackable
No
Current - Maximum per Contact
3.0A
PCB Locator
No
Material - Resin
Polyester
Durability (mating cycles max)
100
Circuits (Loaded)
40
Temperature Range - Operating
-55° to +125°C
Breakaway
No
Material - Plating Mating
Gold
Max-Duration
3
Product Name
C-Grid III
Orientation
Vertical
Polarized to PCB
No
Plating min - Mating
0.381µm
Material - Plating Termination
Tin
First Mate / Last Break
No
Shrouded
Closed Ends
Polarized to Mating Part
Yes
Flammability
94V-0
Component Type
PCB Header
UL
E29179
