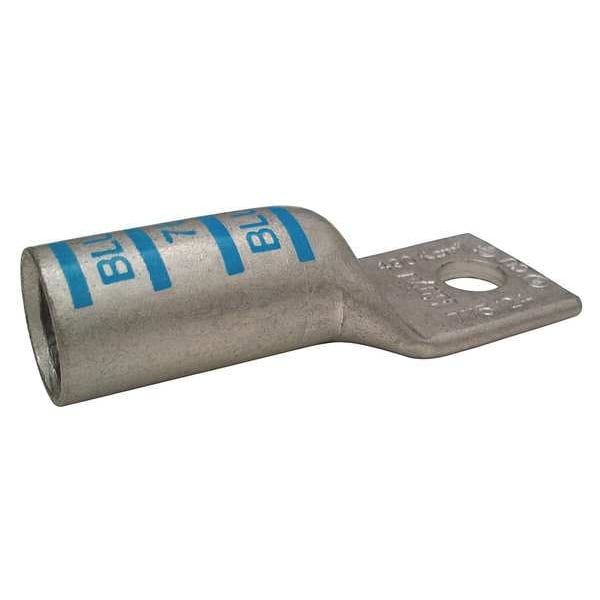

One-Hole Compression Lug, 400 kcmil Max, 3/8 in Stud, Long Barrel, Copper, Blue
Mfr # 24D010
Zoro # G5206616
product price:Â $13.49
/eaKey Features
For Wire Size
400 kcmil
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Long
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 24D010
- Zoro #
- G5206616
- UPC #
- 190735434208
- Country of Origin
- China
Dimensions
- For Wire Size
- 400 kcmil
- For Stud Size
- 3/8 in
- Barrel Size
- Long
- Tongue Width
- 1.39 in
- Width
- 1.39"
- Barrel Length
- Long
- Cable Size
- 400 kcmil
- Length
- 4.07"
- Length (Straight Wireway)
- 4.07 in
- Strip Length
- 2 7/16 in
- Barrel Outside Diameter
- 0.95 in
- Tongue Length
- 1.17 in
- Hole Size
- 0.405 in
- Tongue Thickness
- 0.19 in
- Overall Length
- 4.07 in
- Barrel Inside Diameter
- 0.76 in
- For Stranded Copper Wire Size - Minimum
- 400 kcmil
- For Stranded Copper Wire Size - Maximum
- 400 kcmil
- Overall Width
- 1.39 in
- Wire Rope Length
- 4.07 in
Description
Compression Lug, Barrel Size Long, Color Code Blue, Die Code 76, Tongue Angle Straight, Tongue Width 1.39 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 400 kcmil, For Stranded Copper Wire Size - Maximum 400 kcmil, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1
