  9. Headers & Wire Housings Kk 100 Pcb Assy Top 16 Ckt Tin

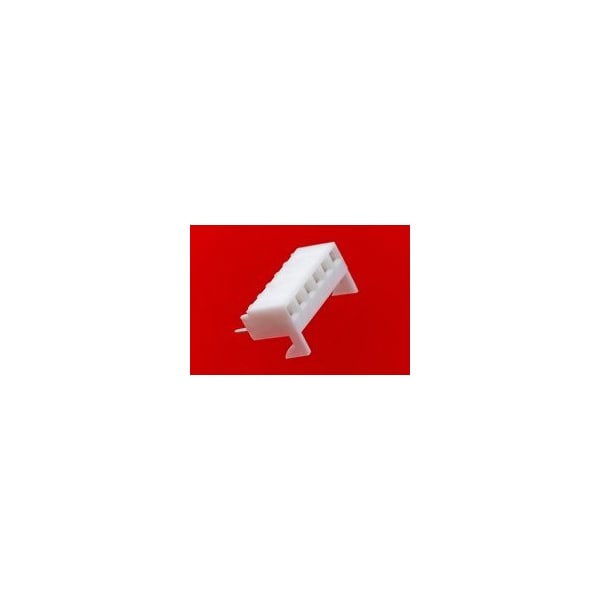

Molex Headers & Wire Housings Kk 100 Pcb Assy Top 16 Ckt Tin 22022165 - main

Headers & Wire Housings Kk 100 Pcb Assy Top 16 Ckt Tin

  • Mfr # 22022165

  • Zoro # G105909977

product price: $1.59
/ea
Sold in multiples of 65 for $103.35

Key Features

Number of Rows
1
Material
Nylon
Color
Natural
Standards
CSA Certified; UL E29179
Application
Board-to-Board, Signal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22022165
Zoro #
G105909977
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
2.54 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.35mm

Details

Number of Rows
1
Material
Nylon
Color
Natural
Standards
CSA Certified; UL E29179
Application
Board-to-Board, Signal
Series
4455
Number of Contacts
16
Terminal Type
Through Hole
Contact Finish
Tin Plated
Current Rating
2.5 A
Max. Voltage
500V
Hole Center to Center
2.54 mm
Max. Temp.
235°C
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
PCB Locator
No
Current - Maximum per Contact
2.5A
Material - Plating Termination
Tin
Color - Resin
Natural (White)
Material - Plating Mating
Tin
Max-Temp
235
Product Name
KK 254
Pitch - Mating Interface
2.54mm
Component Type
PCB Receptacle
Keying to Mating Part
None
Temperature Range - Operating
See Product Specification
Circuits (Loaded)
16
Material - Metal
Brass
Plating min - Mating
2.540µm
Material - Resin
Nylon
Grounding to PCB
No
Lock to Mating Part
No
Flammability
94V-0
Orientation
Vertical
Polarized to PCB
No
Guide to Mating Part
No
UL
E29179
PCB Retention
None
Glow-Wire Capable
No
Max-Duration
5
CSA
LR19980
