Shop MOLEX

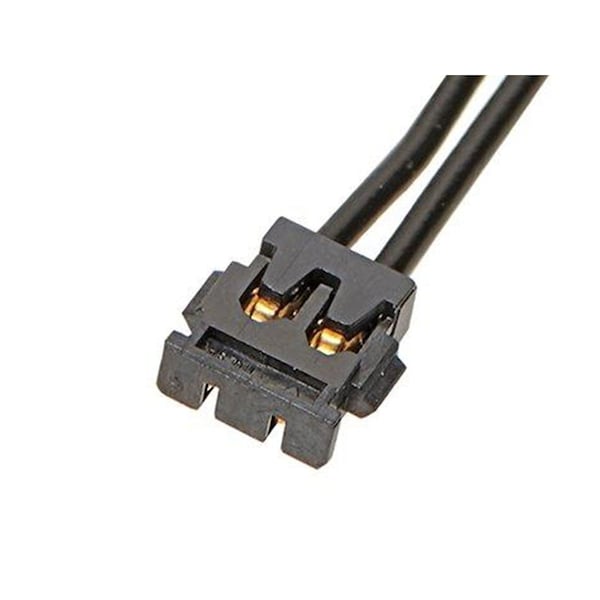

Headers & Wire Housings Picoezmate 3 Circuit 600Mm

  • Mfr # 369200306

  • Zoro # G005910585

product price:
$
2.25
/ea
Sold in multiples of 36 for $81.00

Key Features

Color
Black
Number of Rows
1
Series
36920
Max. Voltage
50V AC/DC
Application
Signal, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
369200306
Zoro #
G005910585
UPC #
-
Country of Origin
India

Dimensions

Length
600 mm
Max. Insulation Dia.
0.7 mm
Contact Plating Thickness
0.1 µm
Wire Size (AWG)
28
Wire Insulation Diameter
0.60-0.70mm
Cable Length
600.00mm

Details

Color
Black
Number of Rows
1
Series
36920
Max. Voltage
50V AC/DC
Application
Signal, Wire-to-Board
Material
Liquid Crystal Polymer
Terminal Type
Crimp or Compression
Wire Range
28 AWG
Type
Discrete Wire Assembly
Connector Type
Female-Female
Hole Center to Center
1.2 mm
Contact Finish
Gold Plated
Number of Contacts
3
Current Rating
1.5 A
Terminal Finish
Gold Plated
Current - Maximum per Contact
1.5A
Lock to Mating Part
Yes
Wire/Cable Type
UL 1571
Material - Plating Termination
Gold
Plating min - Mating
0.100µm
Product Name
Pico-EZmate
Assembly Configuration
Dual Ended Connectors
Single Ended
No
Pitch - Mating Interface
1.20mm
Voltage - Maximum
50V AC (RMS)/DC
Material - Resin
Liquid Crystal Polymer
Material - Plating Mating
Gold
Connector to Connector
Pico-EZmate-to-Pico-EZmate
Material - Metal
Copper Alloy
Overmolded
No
Circuits (Loaded)
3
