  11. Headers & Wire Housings Picoflex 10P Hdr Au R/A Lp W/Pcb Pegs

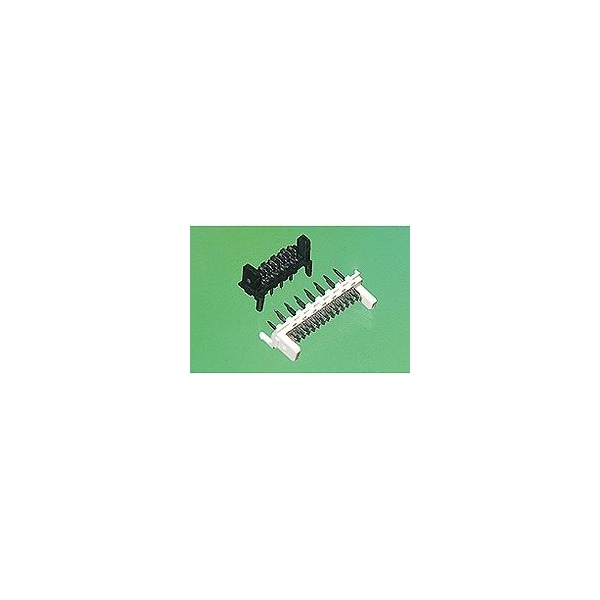

Molex Headers & Wire Housings Picoflex 10P Hdr Au R/A Lp W/Pcb Pegs 903257010 - main

Headers & Wire Housings Picoflex 10P Hdr Au R/A Lp W/Pcb Pegs

  • Mfr # 903257010

  • Zoro # G505914984

product price: $3.45
/ea
Sold in multiples of 35 for $120.75

Key Features

Application
Signal, Wire-to-Board
Series
90325
Keying to Mating Part
None
Stackable
No
Breakaway
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
903257010
Zoro #
G505914984
UPC #
-
Country of Origin
Ireland

Dimensions

PCB Thickness - Recommended
1.60mm

Details

Application
Signal, Wire-to-Board
Series
90325
Keying to Mating Part
None
Stackable
No
Breakaway
No
Polarized to Mating Part
Yes
Color - Resin
Black
Pitch - Mating Interface
1.27mm
Flammability
94V-0
Shrouded
No
Voltage - Maximum
250V
UL
E29179
Circuits (Loaded)
10
Polarized to PCB
Yes
Guide to Mating Part
No
Material - Metal
Brass
Termination Interface Style
Through Hole
Lock to Mating Part
Yes
Glow-Wire Capable
No
First Mate / Last Break
No
Number of Rows
1
Durability (mating cycles max)
100
CSA
LR19980
Temperature Range - Operating
-40° to +105°C
Orientation
Vertical
Material - Resin
Polyester
Component Type
PCB Header
Current - Maximum per Contact
1.2A
PCB Retention
Yes
Material - Plating Mating
Gold
Product Name
Picoflex
