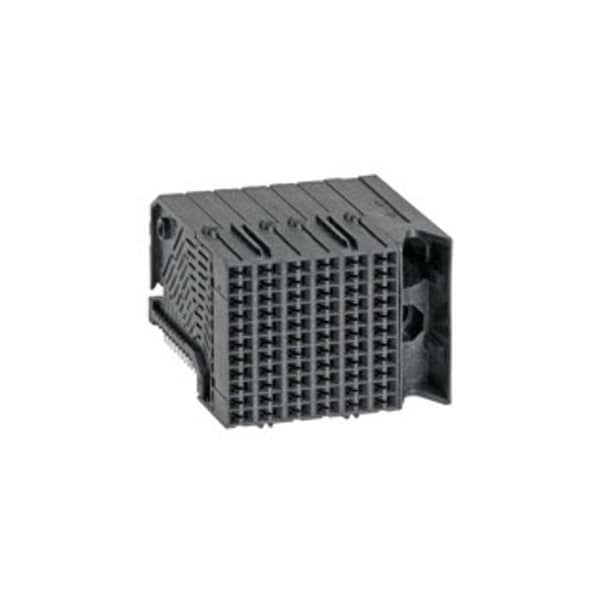

Molex High Speed / Modular Connectors I-Trac 7Row Right Gd Ght Gd 6 Col Dc Assy 760205006 - main

High Speed / Modular Connectors I-Trac 7Row Right Gd Ght Gd 6 Col Dc Assy

  • Mfr # 760205006

  • Zoro # G205926706

product price: $19.49
/ea
Sold in multiples of 4 for $77.96

Key Features

Max. Voltage
120V AC/DC
Max. Temp.
80°C
Application
Coplanar, Daughtercard
Series
76020
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
760205006
Zoro #
G205926706
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
2.00mm

Details

Max. Voltage
120V AC/DC
Max. Temp.
80°C
Application
Coplanar, Daughtercard
Series
76020
Standards
UL E29179
Material
High Temperature Thermoplastic
Color
Black
Features
Surface Mount Compatible
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Current Rating
1 A
Number of Contacts
84
Terminal Type
Through Hole - Compliant Pin
Terminal Finish
Tin Plated
Hole Center to Center
1.85 mm, 3.7 mm (Mating Interface); 1 mm, 2.7 mm (Termination Interface)
Number of Rows
7
Material - Resin
High Temperature Thermoplastic
Plating min - Mating
0.762µm
Stackable
No
Real Signals (per 25mm)
48
Pitch - Mating Interface
1.85mm, 3.70mm
Number of Pairs
4, Open Pin Field
Durability (mating cycles max)
200
Guide to Mating Part
Yes
Material - Plating Termination
Tin
Shielded
No
UL
E29179
Data Rate
12.0 Gbps
Material - Plating Mating
Gold
Voltage - Maximum
120V AC (RMS)/DC
Polarized to PCB
Yes
Flammability
94V-0
Number of Columns
6
Product Name
GbX I-Trac
Keying to Mating Part
None
Component Type
PCB Receptacle
Current - Maximum per Contact
1.0A
Orientation
Right Angle
PCB Retention
Yes
First Mate / Last Break
No
Temperature Range - Operating
-55° to +80°C
Circuits (Loaded)
84
Material - Metal
High Performance Alloy (HPA)
PCB Locator
Yes
