  6. High Speed / Modular Connectors I-Trac Nxt Dc 11X6 Unguided

This item is Discontinued.

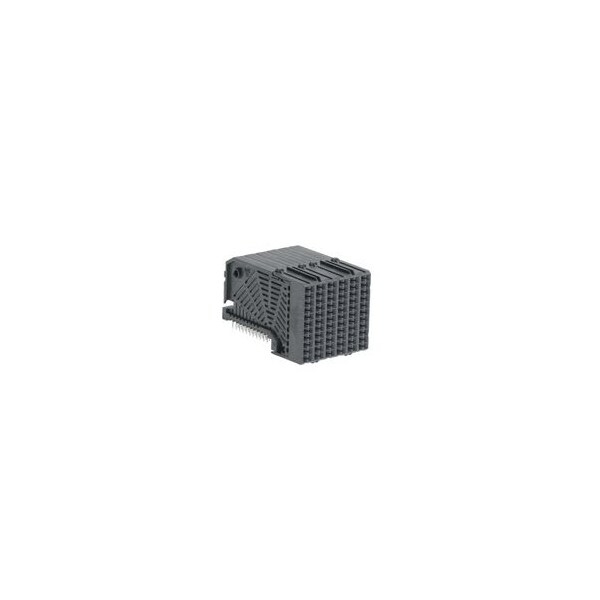

Molex High Speed / Modular Connectors I-Trac Nxt Dc 11X6 Unguided 766801006

High Speed / Modular Connectors I-Trac Nxt Dc 11X6 Unguided (Discontinued)

  • Mfr # 766801006
  • Zoro # G605926665
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
766801006
Zoro #
G605926665
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.00mm
PC Tail Length
1.30mm

Details

Max. Voltage
120V AC/DC
Max. Temp.
80°C
Application
Coplanar, Daughtercard
Series
76680
Standards
UL E29179
Material
High Temperature Thermoplastic
Terminal Type
Through Hole - Compliant Pin
Hole Center to Center
1.85 mm, 3.7 mm (Mating Interface); 1 mm, 2.7 mm (Termination Interface)
Features
Surface Mount Compatible
Color
Black
Terminal Finish
Tin Plated
Number of Rows
11
Current Rating
1 A
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Number of Contacts
132
Stackable
Yes
Voltage - Maximum
120V AC (RMS)/DC
Material - Metal
High Performance Alloy (HPA)
Plating min - Mating
0.762µm
PCB Locator
Yes
Number of Pairs
Open Pin Field
Material - Resin
High Temperature Thermoplastic
UL
E29179
Data Rate
12.0 Gbps
Flammability
94V-0
Current - Maximum per Contact
1.0A
Orientation
Right Angle
Keying to Mating Part
None
PCB Retention
Yes
Component Type
PCB Receptacle
Temperature Range - Operating
-55° to +80°C
Shielded
No
Pitch - Mating Interface
1.85mm, 3.70mm
Product Name
GbX I-Trac
Durability (mating cycles max)
200
Material - Plating Termination
Tin
Polarized to PCB
Yes
First Mate / Last Break
No
Circuits (Loaded)
132
Material - Plating Mating
Gold
Guide to Mating Part
No
Number of Columns
6
