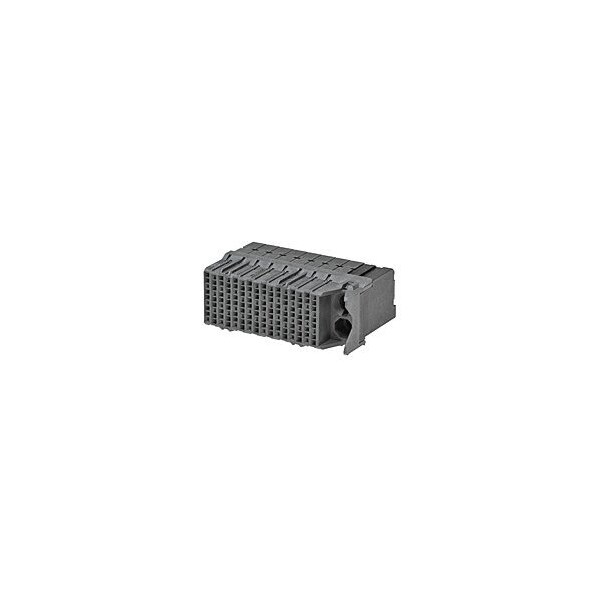

High Speed / Modular Connectors Impact 85 Dc 3X16 Gr Sn
- Mfr # 1705305026
- Zoro # G305926477
product price:Â
$
28.45
/ea
Sold in multiples of 3 for
$85.35
Key Features
Max. Temp.
85°C
Max. Voltage
30V AC, 30V DC
Standards
UL E29179
Material
High Temperature Thermoplastic
Hole Center to Center
1.35 mm; 1.9 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1705305026
- Zoro #
- G305926477
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Contact Plating Thickness
- 0.762 µm
Details
- Max. Temp.
- 85°C
- Max. Voltage
- 30V AC, 30V DC
- Standards
- UL E29179
- Material
- High Temperature Thermoplastic
- Hole Center to Center
- 1.35 mm; 1.9 mm
- Terminal Type
- Through Hole - Compliant Pin
- Color
- Gray
- Number of Rows
- 9
- Contact Finish
- Gold Plated
- Flammability Rating
- UL 94V-0
- Terminal Finish
- Tin Plated
- Number of Contacts
- 144
- Current Rating
- 0.75 A
