  11. High Speed / Modular Connectors Impact Dc 5X16 Gr Sn

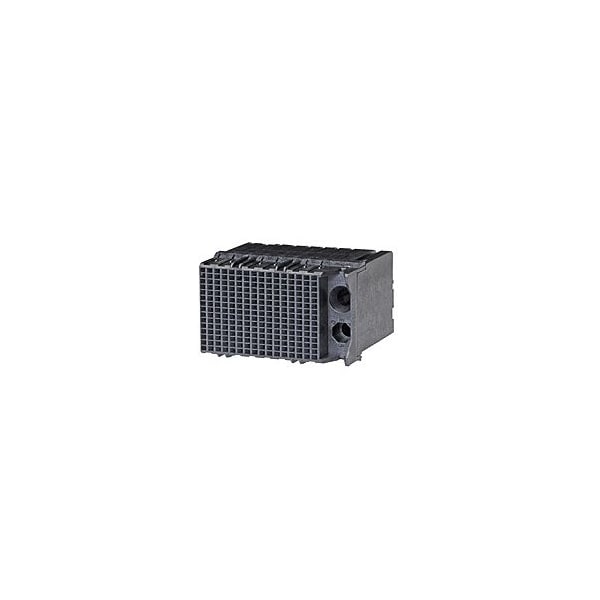

Molex High Speed / Modular Connectors Impact Dc 5X16 Gr Sn 760605166 - main

High Speed / Modular Connectors Impact Dc 5X16 Gr Sn

  • Mfr # 760605166

  • Zoro # G005926647

product price: $36.85
/ea
Sold in multiples of 2 for $73.70

Key Features

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Conventional, Daughtercard
Series
76060
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
760605166
Zoro #
G005926647
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.00mm
PC Tail Length
1.20mm

Details

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Conventional, Daughtercard
Series
76060
Standards
UL E29179
Terminal Type
Through Hole - Compliant Pin
Color
Black
Material
High Temperature Thermoplastic
Hole Center to Center
1.9 mm
Number of Contacts
240
Current Rating
0.75 A
Contact Finish
Gold Plated
Number of Rows
15
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
PCB Locator
No
Material - Metal
High Performance Alloy (HPA)
Pitch - Mating Interface
1.90mm
Current - Maximum per Contact
0.75A
Material - Resin
High Temperature Thermoplastic
Voltage - Maximum
30V AC (RMS)/DC
Circuits (Loaded)
240
First Mate / Last Break
No
Keying to Mating Part
Yes
Durability (mating cycles max)
200
PCB Retention
Yes
Plating min - Mating
0.762µm
Data Rate
25.0 Gbps
Product Name
Impact
Guide to Mating Part
Yes
Orientation
Right Angle
Temperature Range - Operating
-55° to +85°C
Polarized to PCB
No
Number of Pairs
5
Shielded
No
Material - Plating Termination
Tin
Flammability
94V-0
Material - Plating Mating
Gold
Impedance
100Ω
UL
E29179
Number of Columns
16
Stackable
No
Component Type
PCB Receptacle
