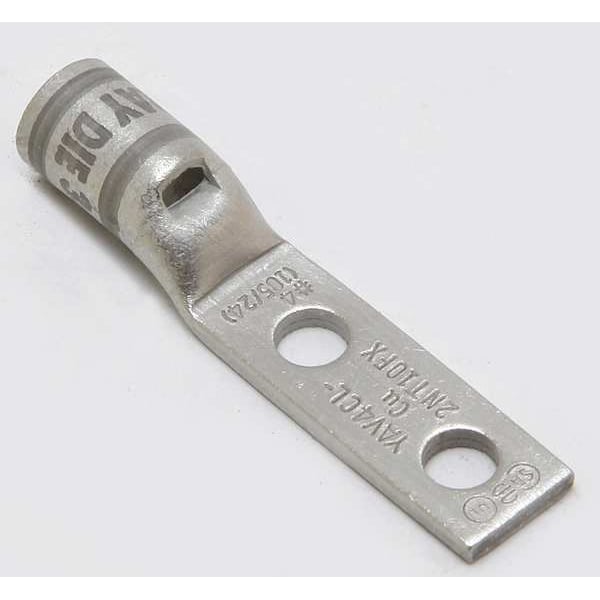

Two-Hole Compression Lug, 4 AWG Max, #10 Stud, Standard Barrel, Copper, Gray
Mfr # YAV4CL2NT10FX
Zoro # G4679367
product price:Â $13.99
/eaKey Features
For Wire Size
4 AWG
For Conductor Material
Copper
For Stud Size
#10
Material
Copper
Barrel Size
Standard
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- YAV4CL2NT10FX
- Zoro #
- G4679367
- UPC #
- 781810559895
- Country of Origin
- United States
Dimensions
- For Wire Size
- 4 AWG
- For Stud Size
- #10
- Barrel Size
- Standard
- Tongue Width
- 0.41 in
- Length
- 1.95"
- Width
- 0.41"
- Barrel Length
- Short
- Cable Size
- 4 AWG
- Overall Length
- 1.95 in
- Overall Width
- 0.41 in
- Length (Straight Wireway)
- 1.96 in
- For Stranded Copper Wire Size - Minimum
- 4 AWG
- Strip Length
- 9/16 in
- Tongue Length
- 0.52 in
- Hole Size
- 0.2 in
- For Stranded Copper Wire Size - Maximum
- 4 AWG
- Barrel Outside Diameter
- 0.38 in
- Conductor - Copper Flex K Size
- 4 AWG
- Conductor - Copper Flex H Size
- 4 AWG
- Conductor - Copper Str Navy Size Range
- 40 (19) Navy-50 (19) Navy
- Conductor - CopperWeld Str Size
- 4 A AWG;4 D AWG;4 N AWG;4 P AWG
- Dimension - Hole Size inch
- 0.21
- Dimension - Bolt Hole Size inch
- 0.20 in
- Conductor - Copper Flex M Size
- 4 AWG
- Conductor - Copper DLO Size
- 5 (91/#24) DLO;4 (105/#24) DLO
- Dimension - Stud Size fraction
- #10
- Dimension - Hole Size mm
- 5.3 mm
- Dimension - Stud Size inch
- #10
- Conductor - Copper Str Size
- 4 AWG
- Conductor - Copper Flex I Size Range
- 4 AWG
- Conductor - Copper Flex H Size Range
- 4 AWG
- Dimension - Z inch
- 0.27 in
- Dimension - Pad Width inch
- 0.41 in
- Dimension - L Length Overall mm
- 50 mm
- Dimension - Bolt Size inch
- 0.21
- Conductor - Copper Str Compact Size
- "4 AWG"
- Conductor Size
- 4 AWG
- Conductor - Copper Flex G Size
- 4 AWG
- Dimension - Bolt Size fraction
- #8-#10
- Dimension - Length Overall inch
- 1.95 in
- Dimension - N inch
- 0.25 in
- Dimension - B Length fraction
- 1/2 in
- Dimension - Outside Diameter inch
- 0.38 in
- Conductor - Copper Flex G Size Range
- 4 AWG
- Dimension - Strip Length inch
- 45185
- Conductor - Copper DLO Size Range
- 4 AWG
- Conductor - Copper Solid Size
- 4 AWG
- Conductor - Copper Flex K Size Range
- 4 AWG
- Conductor - Copper Flex I Size
- 4 AWG
- Dimension - Hole Size fraction
- #10
- Conductor - Copper Str Size Range
- 4 AWG
- Dimension - B Length inch
- 0.50 in
- Conductor - Copper Str Navy Size
- 40 (19) Navy;50 (19) Navy
- Wire Rope Length
- 1.95 in
Description
Compression Lug, Barrel Size Standard, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.41 in, For Conductor Material Copper, For Stud Size #10, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center 0.625 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
