Shop MOLEX

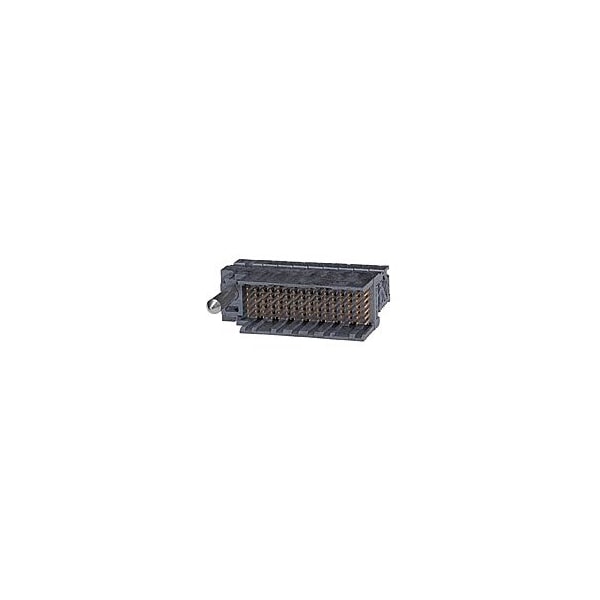

High Speed / Modular Connectors Impact Ram 2X16 Gl Sn

  • Mfr # 764503607

  • Zoro # G205926584

product price:
$
24.55
/ea
Sold in multiples of 4 for $98.20

Key Features

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Coplanar
Series
76450
Standards
UL E29179
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
764503607
Zoro #
G205926584
UPC #
-
Country of Origin
United States
Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Coplanar
Series
76450
Standards
UL E29179
Color
Black
Material
High Temperature Thermoplastic
Terminal Type
Through Hole - Compliant Pin
Hole Center to Center
1.9 mm
Number of Contacts
96
Number of Rows
6
Terminal Finish
Tin Plated
Current Rating
0.75 A
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Impedance
100Ω
PCB Retention
Yes
Stackable
No
Guide to Mating Part
Yes
Number of Columns
16
Pitch - Mating Interface
1.90mm
Voltage - Maximum
30V AC (RMS)/DC
Material - Resin
High Temperature Thermoplastic
Material - Metal
High Performance Alloy (HPA)
Number of Pairs
2
Temperature Range - Operating
-55° to +85°C
Durability (mating cycles max)
200
Material - Plating Termination
Tin
UL
E29179
Material - Plating Mating
Gold
Keying to Mating Part
None
Shielded
No
First Mate / Last Break
No
Component Type
PCB Header
Data Rate
25.0 Gbps
PCB Locator
No
Circuits (Loaded)
96
Product Name
Impact
Current - Maximum per Contact
0.75A
Orientation
Right Angle
Flammability
94V-0
Polarized to PCB
Yes
Plating min - Mating
0.762µm
