  11. High Speed / Modular Connectors Impact Ram 3X8 Gr Sn

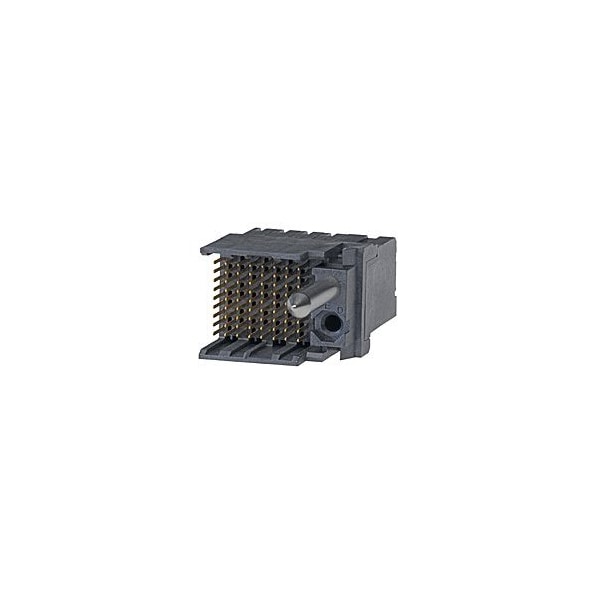

Molex High Speed / Modular Connectors Impact Ram 3X8 Gr Sn 764105807 - main

High Speed / Modular Connectors Impact Ram 3X8 Gr Sn

  • Mfr # 764105807

  • Zoro # G005926708

product price: $14.29
/ea
Sold in multiples of 5 for $71.45

Key Features

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Conventional
Series
76155
Standards
UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
764105807
Zoro #
G005926708
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.00mm
PC Tail Length
1.40mm

Details

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Conventional
Series
76155
Standards
UL E29179
Hole Center to Center
1.9 mm
Color
Black
Terminal Type
Through Hole - Compliant Pin
Material
High Temperature Thermoplastic
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Number of Rows
9
Current Rating
0.75 A
Terminal Finish
Tin Plated
Number of Contacts
72
Stackable
No
UL
E29179
Polarized to PCB
Yes
Voltage - Maximum
30V AC (RMS)/DC
Circuits (Loaded)
120
Temperature Range - Operating
-55° to +85°C
Guide to Mating Part
Yes
Orientation
Vertical
Keying to Mating Part
None
PCB Locator
No
Pitch - Mating Interface
1.90mm
Plating min - Mating
0.762µm
PCB Retention
Yes
Impedance
100Ω
Number of Pairs
4
Material - Plating Termination
Tin
Material - Metal
High Performance Alloy (HPA)
Durability (mating cycles max)
200
Flammability
94V-0
Current - Maximum per Contact
0.75A
Material - Resin
High Temperature Thermoplastic
First Mate / Last Break
No
Product Name
Impact
Component Type
PCB Header
Number of Columns
10
Material - Plating Mating
Gold
Shielded
No
Data Rate
25.0 Gbps
