  11. Impact 5X14 Gl 40Mm Mezzanine Assy

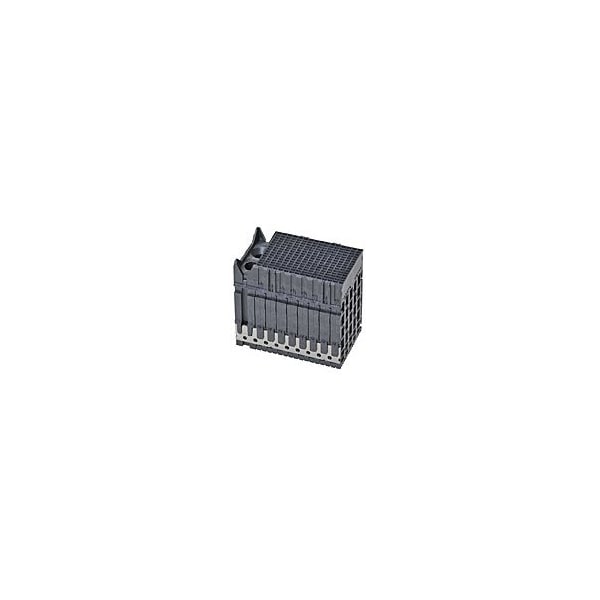

Molex Impact 5X14 Gl 40Mm Mezzanine Assy 765303047 - main

Impact 5X14 Gl 40Mm Mezzanine Assy

  • Mfr # 765303047

  • Zoro # G405821412

product price: $31.89
/ea
Sold in multiples of 3 for $95.67

Key Features

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Mezzanine
Series
76530
Material
High Temperature Thermoplastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
765303047
Zoro #
G405821412
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
1.40mm
PCB Thickness - Recommended
1.60mm

Details

Max. Voltage
30V AC/DC
Max. Temp.
85°C
Application
Mezzanine
Series
76530
Material
High Temperature Thermoplastic
Color
Black
Number of Contacts
210
Contact Finish
Gold Plated
Hole Center to Center
1.9 mm
Current Rating
0.75 A
Terminal Type
Through Hole - Compliant Pin
Terminal Finish
Tin Plated
Number of Rows
15
Number of Columns
14
Circuits (Loaded)
210
Temperature Range - Operating
-55° to +85°C
Orientation
Vertical
Pitch - Mating Interface
1.90mm
PCB Retention
Yes
Durability (mating cycles max)
200
Material - Plating Mating
Gold
Keying to Mating Part
None
Current - Maximum per Contact
0.75A
Guide to Mating Part
Yes
Material - Metal
High Performance Alloy (HPA)
Stackable
No
Number of Pairs
5
Impedance
100Ω
Component Type
PCB Receptacle
First Mate / Last Break
No
Voltage - Maximum
30V AC (RMS)/DC
Polarized to PCB
Yes
PCB Locator
No
Shielded
No
Product Name
Impact
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Plating min - Mating
0.762µm
Data Rate
25.0 Gbps
