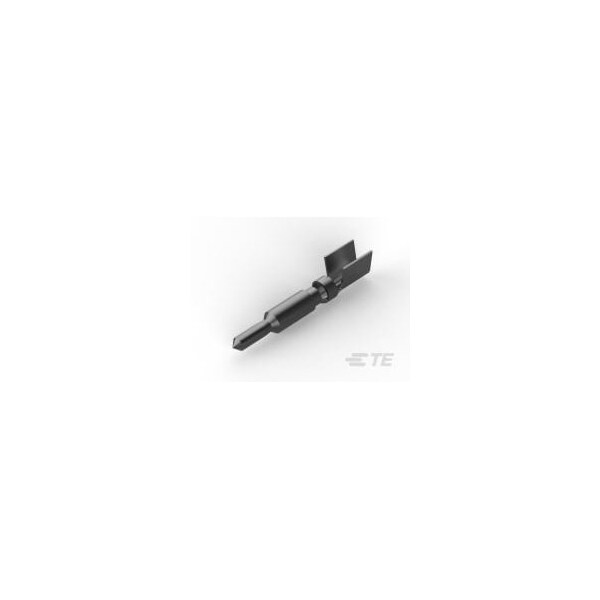

Connector Contact, 10 AWG, 600 V AC, Crimp Termination Only
Mfr # 770246-3
Zoro # G401010162
product price:Â $0.62
/ea
Sold in multiples of 350 for $217.00
Key Features
Termination Style
Crimp Termination Only
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Contact Material
Phosphor Bronze
Maximum Voltage
600 V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 770246-3
- Zoro #
- G401010162
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 10 AWG
- Minimum Wire Size
- 12 AWG
- Max. Insulation Dia.
- 0.2 in
Details
- Item
- Connector Contact
- Termination Style
- Crimp Termination Only
- Contact Material
- Phosphor Bronze
- Maximum Voltage
- 600 V AC
- Minimum Operating Temperature
- -67 Degrees F
- Maximum Operating Temperature
- 120 Degrees C
- Standards
- CSA Certified, UL E28476, UL Recognized
- Application
- Power
- Wire Type
- Discrete; Stranded
- For Use With
- Standard Universal MATE-N-LOK(Socket)
- Contact Finish
- Pre-Tin Plated
- Contact Type
- Pin
- Current Rating
- 7 A
- Connector Terminates To
- Wire & Cable
