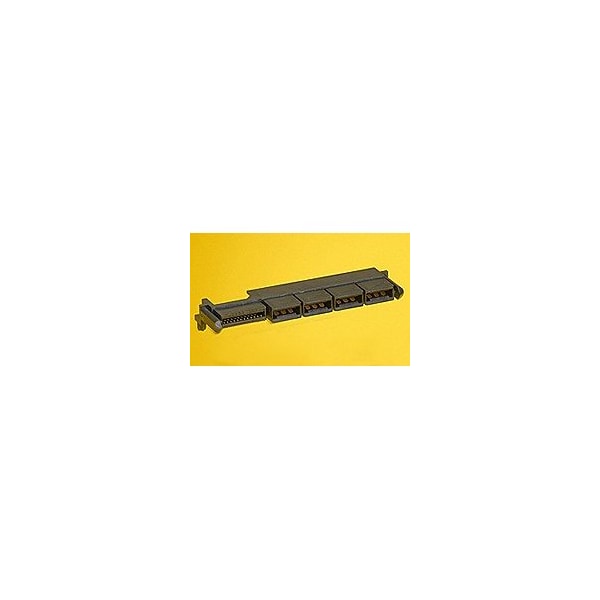

LPH Rcpt Assy RtAn 06 Pwr 36 Sig P and G
Mfr # 45984-6472
Zoro # G7770880
product price: $14.29
/eaSold in multiples of 5 for $71.45
Key Features
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Board-to-Board, Power
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
45984-6472
Zoro #
G7770880
UPC #
822350775045
Country of Origin
United States
Dimensions
Contact Plating Thickness
0.762 µm
Details
Item
Power Connector
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Board-to-Board, Power
Current
27 A
Series
45984
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
260°C
Hole Center to Center
1.27 mm, 12 mm
Material
High Temperature Thermoplastic
Sub-Category
PCB Receptacles
Features
Surface Mount Compatible
Terminal Type
Through Hole
Contact Finish
Gold Plated
Number of Rows
2
Number of Contacts
42
Current Rating
27 A
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Description
