Shop MOLEX

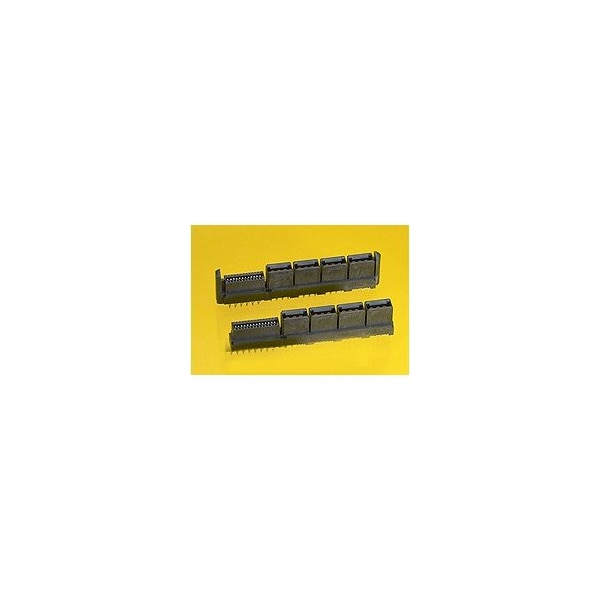

LPH VERT. ASSY NO GUIDES 10PX36S CKT

  • Mfr # 46114-1037

  • Zoro # G4038718

product price:
$
14.55
/ea
Sold in multiples of 5 for $72.75

Key Features

Application
Board-to-Board, Power
Material - Plating Mating
Gold
Color - Resin
Black
Orientation
Vertical
Voltage - Maximum
250V AC (RMS)/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
46114-1037
Zoro #
G4038718
UPC #
756054922859
Country of Origin
China
Application
Board-to-Board, Power
Material - Plating Mating
Gold
Color - Resin
Black
Orientation
Vertical
Voltage - Maximum
250V AC (RMS)/DC
Plating min - Mating
0.762µm
Material - Metal
High Performance Alloy (HPA)
Surface Mount Compatible (SMC)
Yes
Plating min - Termination
2.540µm
Material - Plating Termination
Tin
Polarized to PCB
Yes
(p)ower-(s)ignal Configuration
10p - 36s
Temperature Range - Operating
-40° to +105°C
Pitch - Mating Interface
1.27mm, 12.00mm
Circuits (maximum)
46
CSA
LR19880
Material - Resin
High Temperature Thermoplastic
Termination Interface: Style
Through Hole - Compliant Pin
Polarized to Mating Part
Yes
Pitch - Termination Interface
1.27mm, 2.50mm
Flammability
94V-0
Circuits (Loaded)
46
Number of Rows
2
Product Name
EXTreme LPHPower
UL
E29179
Series
46114
Durability (mating cycles max)
250
Current - Maximum per Contact
30.0A
