Shop LEVITON

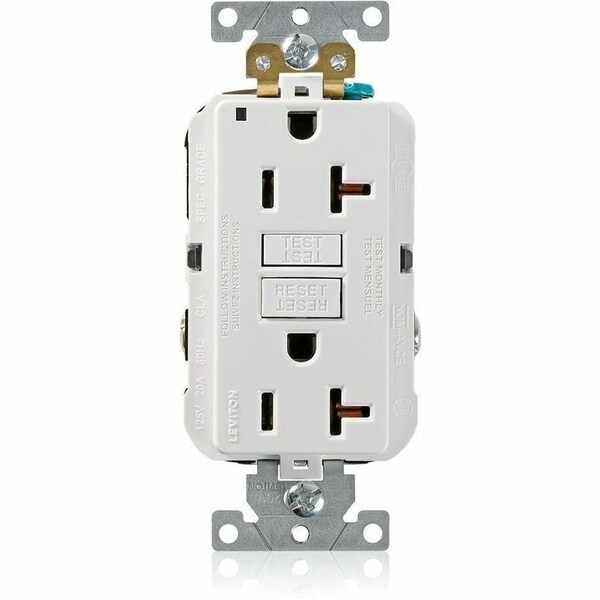

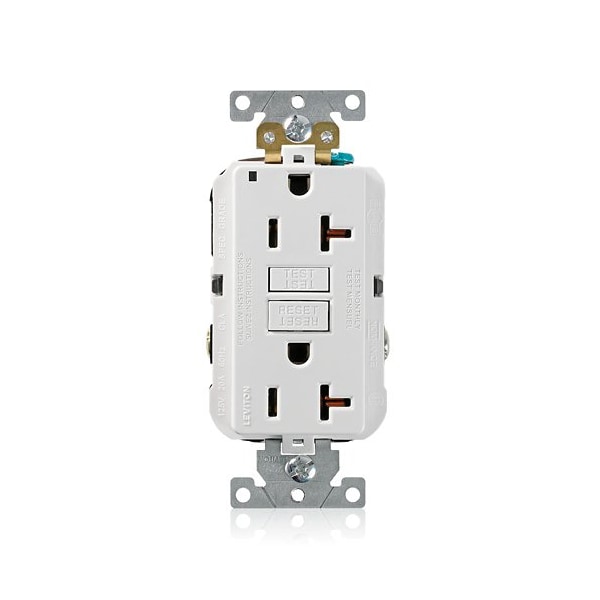

Plugs&Rcptcls, 20A, 125VAC, Wht, Polycarb

  • Mfr # G5362-W

  • Zoro # G722587091

product price:
$
43.59
/ea

Key Features

Maximum Operating Temperature
66 Degrees C
NEMA Receptacle Configuration
5-20R
GFCI
Yes
Features
20 a Feed-Through Terminals, Power Indication LED
Self Testing
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G5362-W
Zoro #
G722587091
UPC #
78477906118
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.7 in
Face Plate Height
2.8 in

Details

Maximum Operating Temperature
66 Degrees C
NEMA Receptacle Configuration
5-20R
GFCI
Yes
Features
20 a Feed-Through Terminals, Power Indication LED
Self Testing
Yes
Housing Material
Polycarbonate
Number of Outlets
2
Number of Wall Plates Included
0
Horsepower Rating
1 hp
Minimum Operating Temperature
-35 Degrees C
Item
Plugs and Receptacles
Maximum Surge Current
10 kA
Grounding
Grounded
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Phase
Single
Number of Gangs
1
Surge Protection
No
Grade
General Use
Standards
CSA, FULS Marking, UL
Wiring Method
Back/Side
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
Number of Poles
2
Current Rating
20 A
IP Rating
Not Rated
Mount Type
Flush
Receptacle Type
Duplex
Flange Type
Non-Flanged
Housing Color
White
Contact Material
Brass
AFCI
No
Market
Industrial
Cover Type
No Cover
Shrouded
No
Number of Wires
3
For Environment
Food and Beverage, Oily/Greasy
Connection Orientation
Straight

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
