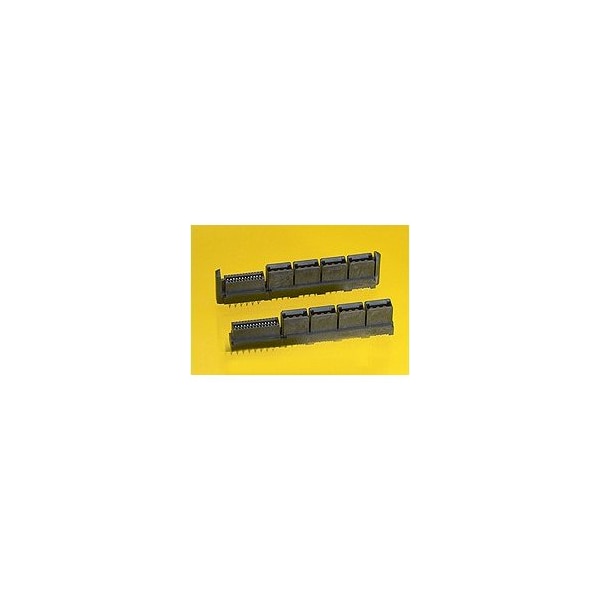

Molex LPH VERT. ASSY NO GUIDES 10PX40S CKT 46114-1041 - main

LPH VERT. ASSY NO GUIDES 10PX40S CKT

  • Mfr # 46114-1041

  • Zoro # G4040501

product price: $13.29
/ea
Sold in multiples of 5 for $66.45

Key Features

Application
Board-to-Board, Power
Plating min - Mating
0.762µm
Plating min - Termination
2.540µm
Circuits (maximum)
50
Polarized to PCB
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46114-1041
Zoro #
G4040501
UPC #
756054922866
Country of Origin
China

Details

Application
Board-to-Board, Power
Plating min - Mating
0.762µm
Plating min - Termination
2.540µm
Circuits (maximum)
50
Polarized to PCB
Yes
CSA
LR19880
(p)ower-(s)ignal Configuration
10p - 40s
Material - Plating Termination
Tin
Flammability
94V-0
Voltage - Maximum
250V AC (RMS)/DC
Pitch - Termination Interface
1.27mm, 2.50mm
Color - Resin
Black
Termination Interface: Style
Through Hole - Compliant Pin
Number of Rows
2
Circuits (Loaded)
50
Product Name
EXTreme LPHPower
Surface Mount Compatible (SMC)
Yes
Series
46114
Temperature Range - Operating
-40° to +105°C
Polarized to Mating Part
Yes
Current - Maximum per Contact
30.0A
Material - Plating Mating
Gold
UL
E29179
Material - Resin
High Temperature Thermoplastic
Durability (mating cycles max)
250
Orientation
Vertical
Pitch - Mating Interface
1.27mm, 12.00mm
Material - Metal
High Performance Alloy (HPA)
