  11. LPH VERT. ASSY NO GUIDES 12PX36S CKT

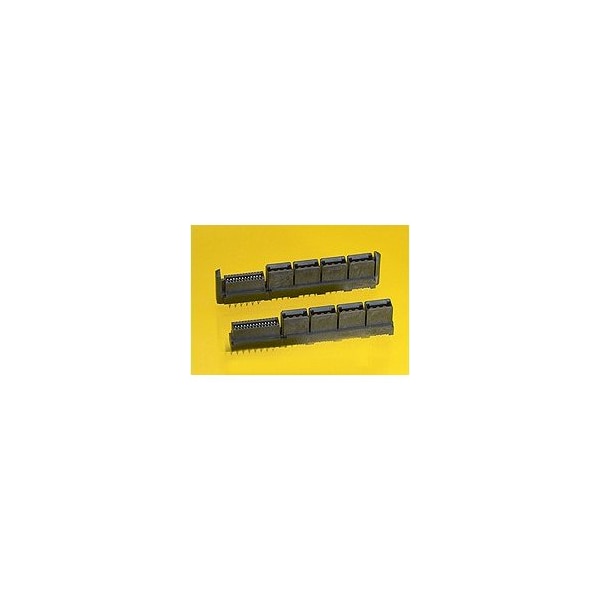

Molex LPH VERT. ASSY NO GUIDES 12PX36S CKT 46114-1237 - main

LPH VERT. ASSY NO GUIDES 12PX36S CKT

  • Mfr # 46114-1237

  • Zoro # G4042881

product price: $14.19
/ea
Sold in multiples of 5 for $70.95

Key Features

Application
Board-to-Board, Power
Circuits (Loaded)
48
Current - Maximum per Contact
30.0A
Termination Interface: Style
Through Hole - Compliant Pin
Voltage - Maximum
250V AC (RMS)/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46114-1237
Zoro #
G4042881
UPC #
756054922934
Country of Origin
China

Details

Application
Board-to-Board, Power
Circuits (Loaded)
48
Current - Maximum per Contact
30.0A
Termination Interface: Style
Through Hole - Compliant Pin
Voltage - Maximum
250V AC (RMS)/DC
Material - Plating Mating
Gold
Series
46114
Pitch - Mating Interface
1.27mm, 12.00mm
Material - Metal
High Performance Alloy (HPA)
Pitch - Termination Interface
1.27mm, 2.50mm
Flammability
94V-0
Color - Resin
Black
Surface Mount Compatible (SMC)
Yes
Orientation
Vertical
Material - Plating Termination
Tin
Polarized to PCB
Yes
Material - Resin
High Temperature Thermoplastic
Plating min - Termination
2.540µm
Temperature Range - Operating
-40° to +105°C
Product Name
EXTreme LPHPower
Circuits (maximum)
48
(p)ower-(s)ignal Configuration
12p - 36s
UL
E29179
Number of Rows
2
CSA
LR19880
Plating min - Mating
0.762µm
Polarized to Mating Part
Yes
Durability (mating cycles max)
250
