Shop MOLEX

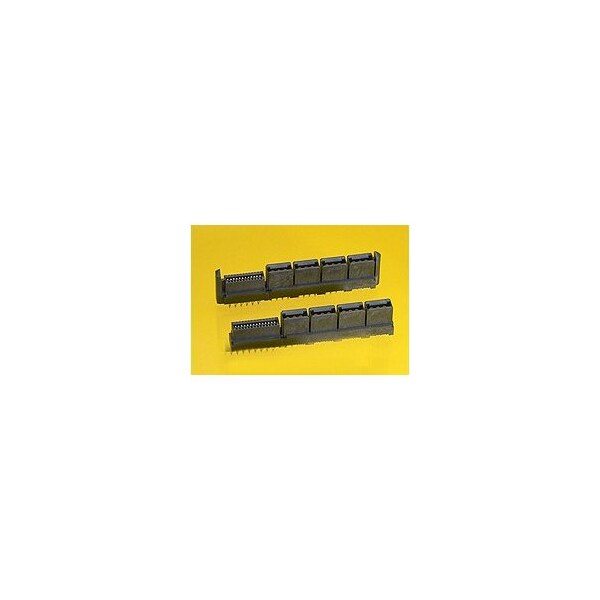

LPH VERT. ASSY NO GUIDES 14PX40S CKT

  • Mfr # 46114-1441

  • Zoro # G4043609

product price:  $15.65
/ea
Sold in multiples of 4 for $62.60

Key Features

Application
Board-to-Board, Power
Series
46114
Polarized to Mating Part
Yes
Pitch - Mating Interface
1.27mm, 12.00mm
Polarized to PCB
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
46114-1441
Zoro #
G4043609
UPC #
756054923023
Country of Origin
China

Details

Application
Board-to-Board, Power
Series
46114
Polarized to Mating Part
Yes
Pitch - Mating Interface
1.27mm, 12.00mm
Polarized to PCB
Yes
Pitch - Termination Interface
1.27mm, 2.50mm
Color - Resin
Black
Current - Maximum per Contact
30.0A
Number of Rows
2
UL
E29179
Orientation
Vertical
Product Name
EXTreme LPHPower
Plating min - Mating
0.762µm
Flammability
94V-0
Material - Plating Mating
Gold
Plating min - Termination
2.540µm
Voltage - Maximum
250V AC (RMS)/DC
Material - Metal
High Performance Alloy (HPA)
Circuits (maximum)
54
Circuits (Loaded)
54
(p)ower-(s)ignal Configuration
14p - 40s
CSA
LR19880
Material - Resin
High Temperature Thermoplastic
Surface Mount Compatible (SMC)
Yes
Material - Plating Termination
Tin
Durability (mating cycles max)
250
Termination Interface: Style
Through Hole - Compliant Pin
Temperature Range - Operating
-40° to +105°C
