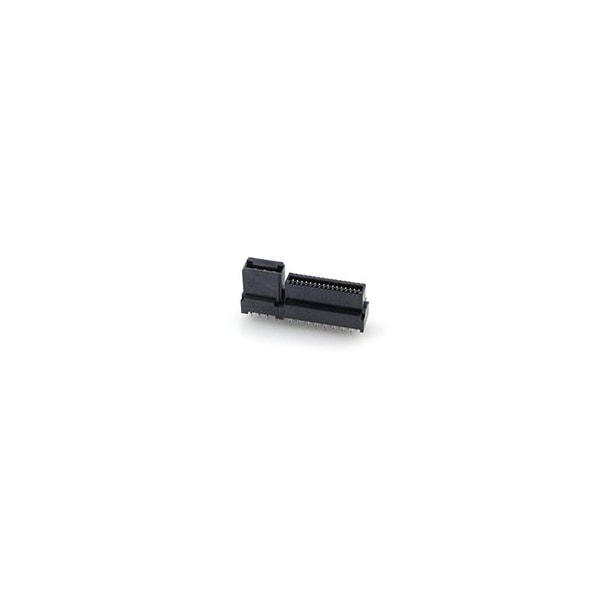

Molex LPH VERT. ASSY NO GUIDES 2PX32S CKT 46114-2321 - main

LPH VERT. ASSY NO GUIDES 2PX32S CKT

  • Mfr # 46114-2321

  • Zoro # G4048271

product price: $7.79
/ea
Sold in multiples of 16 for $124.64

Key Features

Application
Board-to-Board, Power
Plating min - Mating
0.762µm
Voltage - Maximum
250V AC (RMS)/DC
Material - Plating Termination
Tin
UL
E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46114-2321
Zoro #
G4048271
UPC #
756054923085
Country of Origin
China

Details

Application
Board-to-Board, Power
Plating min - Mating
0.762µm
Voltage - Maximum
250V AC (RMS)/DC
Material - Plating Termination
Tin
UL
E29179
Number of Rows
2
Material - Resin
High Temperature Thermoplastic
Material - Metal
High Performance Alloy (HPA)
Circuits (maximum)
34
Current - Maximum per Contact
30.0A
Circuits (Loaded)
34
Polarized to PCB
Yes
Temperature Range - Operating
-40° to +105°C
Pitch - Mating Interface
1.27mm, 12.00mm
Orientation
Vertical
Termination Interface: Style
Through Hole - Compliant Pin
Polarized to Mating Part
Yes
(p)ower-(s)ignal Configuration
2p - 32s
Surface Mount Compatible (SMC)
Yes
Pitch - Termination Interface
1.27mm, 2.50mm
Plating min - Termination
2.540µm
Durability (mating cycles max)
250
Series
46114
Color - Resin
Black
Material - Plating Mating
Gold
Flammability
94V-0
CSA
LR19880
Product Name
EXTreme LPHPower
