  11. LPH VERT. ASSY NO GUIDES 2PX40S CKT

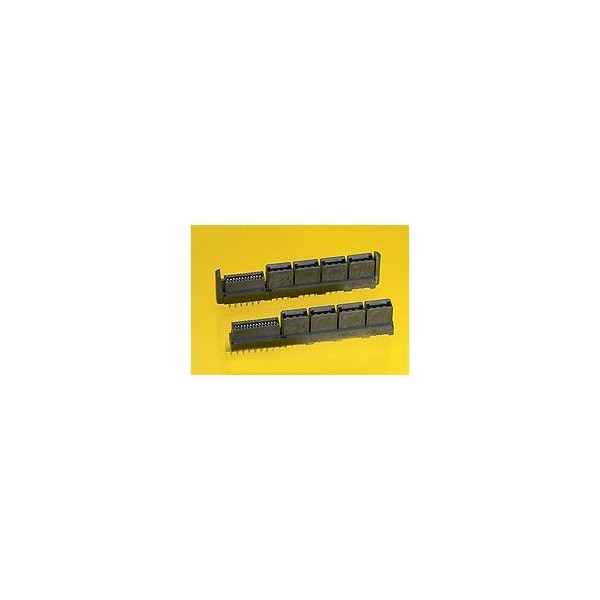

Molex LPH VERT. ASSY NO GUIDES 2PX40S CKT 46114-2401 - main

LPH VERT. ASSY NO GUIDES 2PX40S CKT

  • Mfr # 46114-2401

  • Zoro # G4045471

product price: $8.15
/ea
Sold in multiples of 10 for $81.50

Key Features

Application
Board-to-Board, Power
Orientation
Vertical
Pitch - Termination Interface
1.27mm, 2.50mm
Temperature Range - Operating
-40° to +105°C
Current - Maximum per Contact
30.0A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46114-2401
Zoro #
G4045471
UPC #
756054923108
Country of Origin
China

Details

Application
Board-to-Board, Power
Orientation
Vertical
Pitch - Termination Interface
1.27mm, 2.50mm
Temperature Range - Operating
-40° to +105°C
Current - Maximum per Contact
30.0A
Polarized to Mating Part
Yes
Material - Plating Termination
Tin
Flammability
94V-0
Plating min - Mating
0.762µm
Polarized to PCB
Yes
Voltage - Maximum
250V AC (RMS)/DC
Circuits (maximum)
42
(p)ower-(s)ignal Configuration
2p - 40s
UL
E29179
Plating min - Termination
2.540µm
Material - Metal
High Performance Alloy (HPA)
Number of Rows
2
Material - Resin
High Temperature Thermoplastic
Product Name
EXTreme LPHPower
Pitch - Mating Interface
1.27mm, 12.00mm
Circuits (Loaded)
42
CSA
LR19880
Durability (mating cycles max)
250
Color - Resin
Black
Series
46114
Termination Interface: Style
Through Hole - Compliant Pin
Material - Plating Mating
Gold
Surface Mount Compatible (SMC)
Yes
