  11. LPH VERT. ASSY NO GUIDES 4PX36S CKT

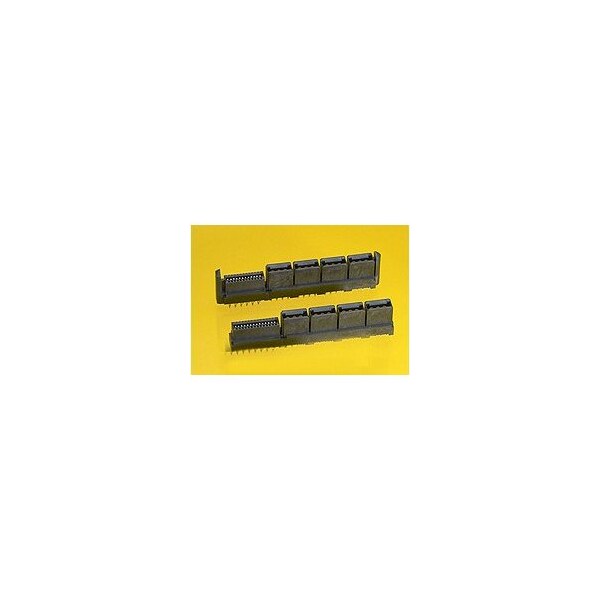

Molex LPH VERT. ASSY NO GUIDES 4PX36S CKT 46114-4361 - main

LPH VERT. ASSY NO GUIDES 4PX36S CKT

  • Mfr # 46114-4361

  • Zoro # G4048332

original price: $9.79
5% off
new price: $9.29
/ea
Sold in multiples of 7 for $65.03

Key Features

Application
Board-to-Board, Power
Color - Resin
Black
Durability (mating cycles max)
250
Voltage - Maximum
250V AC (RMS)/DC
Number of Rows
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46114-4361
Zoro #
G4048332
UPC #
756054923153
Country of Origin
China

Details

Application
Board-to-Board, Power
Color - Resin
Black
Durability (mating cycles max)
250
Voltage - Maximum
250V AC (RMS)/DC
Number of Rows
2
Temperature Range - Operating
-40° to +105°C
Current - Maximum per Contact
30.0A
Circuits (Loaded)
40
Material - Plating Mating
Gold
UL
E29179
Surface Mount Compatible (SMC)
Yes
Flammability
94V-0
Material - Metal
High Performance Alloy (HPA)
Plating min - Termination
2.540µm
Orientation
Vertical
Termination Interface: Style
Through Hole - Compliant Pin
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Polarized to Mating Part
Yes
Circuits (maximum)
40
Plating min - Mating
0.762µm
Product Name
EXTreme LPHPower
Pitch - Mating Interface
1.27mm, 12.00mm
CSA
LR19880
Pitch - Termination Interface
1.27mm, 2.50mm
(p)ower-(s)ignal Configuration
4p - 36s
Series
46114
Polarized to PCB
Yes
