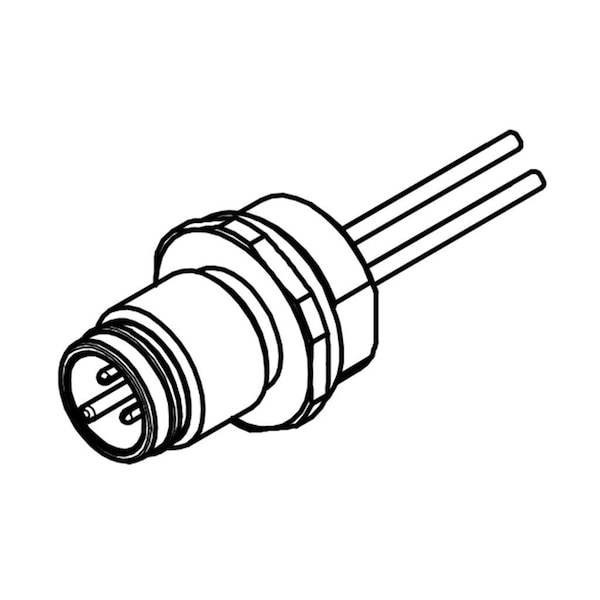

Molex M12-RECEPT-4P-MALE-FR-PG9-0.3M 1200845103 - main

M12-RECEPT-4P-MALE-FR-PG9-0.3M

  • Mfr # 1200845103

  • Zoro # G600442634

product price:  $19.95
/ea
Sold in multiples of 4 for $79.80

Key Features

Product Type
M12
Wire Size
22 AWG
Maximum Voltage
250 V AC/DC
IP Rating
IP69K
Max. Amps
4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200845103
Zoro #
G600442634
UPC #
883906778767
Country of Origin
Unknown

Dimensions

Wire Size
22 AWG
Length
0.3 m
Mounting Thread Size
PG9

Details

Item
Receptacle
Product Type
M12
Maximum Voltage
250 V AC/DC
IP Rating
IP69K
Max. Amps
4 A
Minimum Operating Temperature
-25 Degrees
Maximum Operating Temperature
90 Degrees C
Connector Type
Male
Series
120084
Max. Voltage
250V AC/DC
Sub-Category
Industrial Receptacles
Type
Single Ended (pigtail)
Material
Brass
Standards
UL E152210
Product Name
Ultra-Lock (M12)
NEMA Rating
NEMA 6
Material - Component
Nickel-plated Brass
Keyway
Single
Poles
4
Temperature Range - Operating
-25° to +90°C
Wire/Cable Type
UL 1569
Panel Mount
Front
Orientation
Straight
Coupling Type
External Thread
Current - Maximum per Contact
4.0A
Voltage - Maximum
60V

Description
